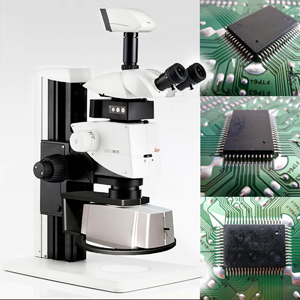

The compact stereo microscope has a wide zoom range, large object field and 100/115mm working distance. The device has a 0.3x objective. The microscope consist of an LED with ring light for oblique and direct view mode. The unit can be used easily.
The microscope has a 360° view without the need to move the object. The device can easily adapt to major microscope brands. With a push of a lever, the module can have a normal and oblique inspection.
The microscope is perfect for SMT inspection, repair of watches, and jewelry, without the need to move its head.
Technical specifications:
Switchable modes: oblique and straight view
Working distance in oblique view: approx. 110mm
Working distance in straight view: approx. 115mm
Integrated objective: 0.3x
View angle max.: approx. 30°
Weight: approx. 1.6kg including adapter
For microscope stands with column extension min. 140mm
Illumination: LED ring light
Power supply: 100-240 V / 60W
3-core power cord EU included: 2m
Light point positioning in oblique view: battery powered, two AA 1.5V
dovetail adapter for all major microscope brands
