OPTICS - IMAGING - AUTOMATION Opto manufacturers unique Compact embedded Imaging Modules with on board Camera/Lens/Light/Intelligence as one unit with one wire, ´plug and play` to machine builders and OEMs for industrial and biomedical applications. Opto reduces all solutions to their needs in Size, Weight, Price to add maximized Value for the Photonic and Machine Vision Markets.
Product filed under:
Optics / Lenses / Filters Optics / Lenses / Filters

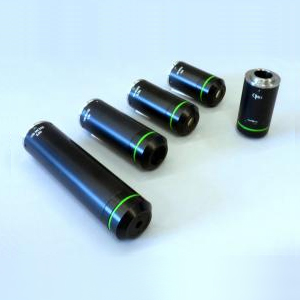

The Zero Distortion Mega Pixel Macro Lenses feature high-quality image resolution, and near-zero distortion for capturing tiny objects. These were also made for measuring the dimensions of mechanical parts, electronic components and board inspection. The lenses can be applied in printing, microbiology, forensic, and video microscopy operations.
This product has a C-Mount model configuration, and contains <0.01% distortion, 35-mm diameter.
Specification:
Article number 100-MC030
Mag. 0.3x
W.D. 202mm
F-No. 8.4
Resolution 22 LP/mm
Field Depth 1.5mm
Distortion < 0.01%
FoV 1/3' [mm] 16.0 x 12.0
FoV 1/2' [mm] 21.3 x 16.0
FoV 1/1.8' [mm] 23.9 x 17.7
FoV 2/3' [mm] 29.3 x 22.0
Documentation: http://www.opto.de/media/100-mc030_datasheet.web.pdf
