Portable Stand for Leica DMS 300/1000
Opto Portable Stand was developped to master the most demanding field micrososcopy inspections.

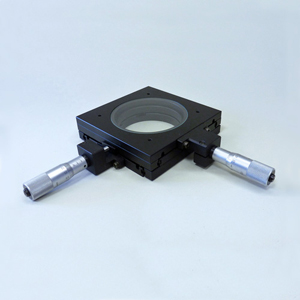

- Usable for roller inspection starting with a diameter of 60 mm or flat samples Sensitive positioning of the microscope by x/y stages, travel: 25 mm; spindle pitch: 0.5 mm; scale division: 10 µm; adjustment sensitivity: 5 µm
- Z-axis movement with coarse/fine focusing drive, travel in coarse focus: 80 mm (+42/-38mm); travel in fine gear: 0.24mm; fine drive sensitivity 2.9µm
- Usable objective lenses M-series: 0.5x / 0.63x / 0.8x / 1.0x / 1.25x / 1.6x / 2.0x
- Usable objective lenses Z-series: 0.5x / 0.8x / 1.0x / 2.0x
- Optional LED ringlight illumination only by using regular Schott or Photonics products
- Optional LED spotlight illumination with Opto Jointed Coupler and LED Spots form Schott or Photonics
- Dimensions approx. 258 x 150 x 213mm (basic unit)
- Weight approx. 4.5kg
