Designed to last, built to order and delivered in days, our systems are engineered for reliability in even the most challenging environments.
Product filed under:
Computers, Industrial, and Embedded Vision Processors / Compact Vision Systems Computers, Industrial, and Embedded Vision Processors / Compact Vision Systems

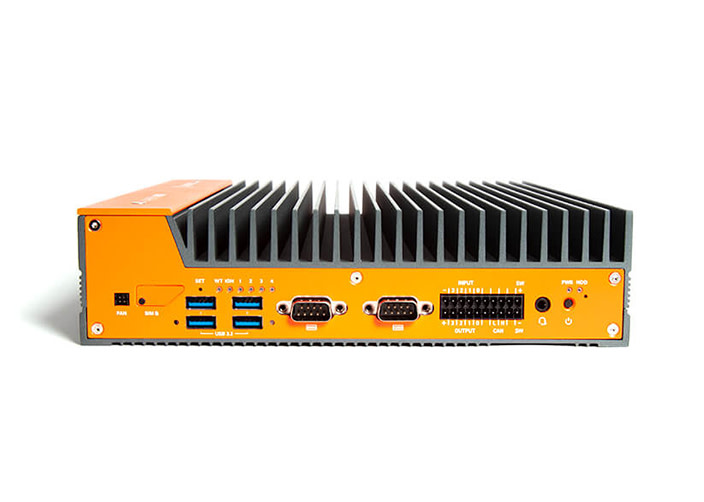

Karbon 803 packs 12th Gen Intel Core power, versatile industrial connectivity and available PCIe Gen 4 expansion, into a rugged platform engineered to survive wherever you need.
ADVANCED PROCESSING PERFORMANCE
If your project demands powerful, scalable, and efficient processing, along with compatibility for PCIe Gen 4 expansion, the Karbon 803 has you covered. Powered by 12th Gen Intel Core processing (formerly known as Alder Lake), Karbon 803 leverages Intel's unique hybrid core architecture, which adapts to your needs by directing the right thread to the right core. In addition to its advanced processing, Karbon 803's optional ECC memory, 4G and Wi-Fi compatibility (Wi-Fi 6e support coming soon) give you the capabilities you need now, and set your project up for success well into the future.
Looking for even more options? Explore the entire Karbon 800 Series.
ENGINEERED FOR THE EDGE
The Karbon 803 has been engineered to give you options. It balances advanced passive cooling technology with a flexible expansion bay, protecting the core components from dust and debris in the upper part of the system, while providing space for an additional 2.5" SSD and an actively cooled PCIe Gen 4 x16 expansion slot below. Rugged features include 12 to 48 V DC power input, an operating temperature range of -40 to 70°C, and testing to MIL-STD-810 shock and vibration standards. The Karbon 803 has been tested for reliable operation in industrial, medical, automotive, rail and maritime applications. Available wall, DIN rail and vibration isolating mounting kits give you a range of options for system installation. Wherever the edge of your project takes you, the Karbon 803 is engineered to perform.
CONNECT TO ANYTHING, ANYWHERE
The Karbon 803 can be configured with up to 6x 2.5 GbE LAN ports, two of which can provide power (PoE+) and include Intel vPro support for remote out-of-band (OOB) management of the system. Other connectivity includes dual DisplayPorts, 2x COM, 6x USB 3.2 Gen 2, dual SIM slots and integrated 18-pin GPIO (16-bit DIO, CAN bus, External Switch). Automotive power input and a customer-programmable Microcontroller Unit (MCU) for ignition timing control, further reinforce the installation freedom the Karbon 803 provides, and puts you in control of how and where your data is captured and processed.
