NMB is part of the MinebeaMitsumi Group of Companies. MinebeaMitsumi Inc. is a comprehensive manufacturer of high precision components. With 36 manufacturing facilities and a multinational presence in 18 countries, including Thailand, China, Singapore, Japan, Europe and North America, MinebeaMitsumi remains a world leader in the design and manufacturing of electro-mechanical components. MinebeaMitsumi is one of the largest stepper (hybrid motor and PM stepping motor) producer in the world. We also produce DC brush motor and brushless motor as well as different kinds of bearings and air movers (AC and DC fan).
Product filed under:
DC Brushed Motors, Motors, and Motors & Drives DC Brushed Motors, Motors, and Motors & Drives

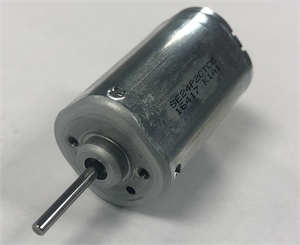

Our DC brush motor pursue competitive price through using in-house parts production. Our motors size range of the outside diameter round type from 24mm to 35.7mm
flat type from 8mm to 24.2mm, and contribute various application.
Also, we developed new square type (S Series) to realize small space, high torque and light weight. (Size: 8mm to 30mm)
* Rated voltage and no load speed are an guideline. If you have any concrete requirement, pls. feel free to contact us.
| Shape | Model | Rated Voltage [V] |
No Load Speed [r/min] |
|
|---|---|---|---|---|
| Square | SE8F | 4 | 15300 |  [251.7 KB] |
| Square | SE8G | 4.5 | 12500 | [228.2 KB] |
| Square | SE10G | 3.0 ~ 4.0 | 7703 ~ 11100 | [276.0 KB] |
| Square | SE10J | 3 ~ 5 | 5506 ~ 9171 | [273.9 KB] |
| Square | SE15H | 12.0 | 5315 ~ 9900 | [275.3 KB] |
| Square | SE15H0STTS Vibration motor | 12 | [87.7 KB] |
|
| Square | SE15K | 12.0 | 3935 ~ 6780 | [276.7 KB] |
| Square | SE15M | 12.0 | 4320 ~ 6920 | [274.9 KB] |
| Square | SE18J | 12.0 | 2985 ~ 5930 | [274.5 KB] |
| Square | SE18K | 12.0 | 2550 ~ 4080 | [274.8 KB] |
| Square | SE18M | 12.0 | 3025 ~ 4680 | [275.5 KB] |
| Square | SE24M | 12.0 | 6433 | [252.3 KB] |
| Square | SE24P | 24.0 | 3274 ~ 7772 | [277.0 KB] |
| Square | SE24A | 12 | 3725 ~ 6249 | [274.4 KB] |
| Square | SE30R | 12.0 ~ 24.0 | 5279 ~ 6790 | [278.2 KB] |
| Square | SE15·SE18 with Planetary Gear Unit | 6 ~ 12 | 43 ~ 526 | [188.2 KB] |
| Shape | Model | Rated Voltage [V] |
No Load Speed [r/min] |
|
|---|---|---|---|---|
| Flat | M1N6 | 5.0 | 14100 ~ 15700 | [261.1 KB] |
| Flat | M1N10 | 5.0 | 8324 ~ 16040 | [272.4 KB] |
| Flat | PAN14 | 12.0 | 10359 ~ 14974 | [279.2 KB] |
| Flat | PSF13 | 12 | 8545 ~ 15240 | [279.9 KB] |
| Flat | PKN7 | 3.0 | 7787 ~ 15844 | [278.9 KB] |
| Flat | PKN12 | 3.0 | 10023 | [253.9 KB] |
| Flat | PNN7 | 1.5 ~ 3.0 | 14183 ~ 22840 | [272.8 KB] |
| Flat | PNN7RB55PW Vibration motor | 3.0 | [193.0 KB] |
|
| Flat | PNN13 | 3.0 | 12213 ~ 16426 | [276.7 KB] |
| Flat | PPN7 | 2.5 ~ 6.0 | 3050 ~ 14000 | [277.2 KB] |
| Flat | PPN13 | 5.0 ~ 7.4 | 7000 ~ 9100 | [276.4 KB] |
| Flat | PWN10E | 12.0 | 6880 | [252.3 KB] |
| Flat | PWN10V | 13.5 ~ 24.0 | 10792 ~ 13242 | [295.2 KB] |
| Flat | PWN17V | 12 ~ 24 | 8669 ~ 11973 | [296.3 KB] |
| Round | MDN3R | 2.0 | 2250 | [251.2 KB] |
| Round | MXN12R | 11.5 ~ 24.0 | 5712 ~ 8200 | [276.6 KB] |
| Round | PJN29 | 24.0 | 6266 | [250.6 KB] |
