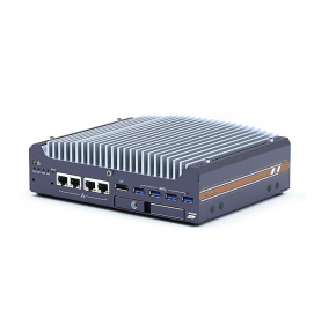

Intel® 12th-Gen Core™ i9/ i7/ i5/ i3 Compact Fanless Computer Nuvo-9531 Series

• 212 x 165 x 63 mm low-profile design
• Intel® 12th-Gen Core™ 35W/ 65W LGA1700 CPU
• Rugged, -25°C to 60°C fanless operation
• 4x GbE and 4x USB3.2 Gen 1 with screw-lock
• 1x hot-swappable HDD tray and 1x M.2 2280 Gen4 x4 NVMe for storage
• 2x full-size mPCIe sockets
• 4-CH isolated DI and 4-CH isolated DO
• VGA + DP dual display outputs

Nuvo-9531 is one of the most compact fanless embedded computers based on the Intel 12th -Gen Alder Lake platform. Measuring just 212 x 165 x 63 mm, it can fit into restricted spaces, such as in robotic arm and AMR applications. Despite its compact size, Nuvo-9531 does not compromise on performance. Built on Intel's 7nm process, Intel 12th Gen processors have up to 16 cores/ 24 threads to deliver up to 1.8x the performance when compared to previous Intel 10th or 11th Gen platforms. Nuvo-9531 is a compact fanless embedded computer that can provide the ultimate computing for various industrial applications.

Nuvo-9531 has rich I/O functions. It features four GbE and four USB3.2 Gen 1 ports for multiple camera connectivity. In addition, it features a Gen4 x4 M.2 NVMe slot for the latest NVMe SSDs that support read/ write speeds up to 7000 MB/s. It also has another hot-swappable HDD tray to hot-swap the storage drive without turning off the system or dismantling the chassis. There are two mPCIe and one M.2 E key slots to install WiFi or 5G/ 4G for wireless communication needs. In addition, Nuvo-9531 is also equipped with 8x DIO, 2x COM ports, and dual display outputs for your application needs.

As a compact embedded computer, Nuvo-9531 delivers excellent computing performance and offers an abundance of I/O connections. It is suitable for a variety of industrial applications, especially when installation space is limited. Nuvo-9531 is the ideal compact fanless computer for the industrial market.

Learn more about Neousys Nuvo-9531 Series compact fanless computer
