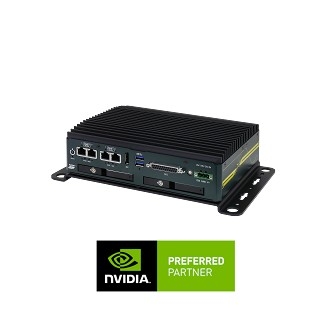

NVIDIA® Jetson AGX Xavier™ AI NVR NRU-120S Series

NVIDIA® Jetson AGX Xavier™ AI NVR for Intelligent Video Analytics

• IPowered by NVIDIA® Jetson AGX Xavier™ SOM bundled with JetPack 4.4
• 4x IEEE 802.3at Gigabit PoE+ ports with screw-lock
• 2x front-accessible, hot-swappable 2.5" HDD trays
• 1x M.2 2280 M key socket for NVMe SSD
• 1x mini PCIe socket for WIFI/4G module
• 1x isolated CAN bus port and 1x RS232 port with flow control
• 1x GPS PPS input, 3-CH isolated DI and 4-CH isolated DO
• 8V to 35V wide-range DC input with built-in ignition power control

NRU-120S series is a new rugged edge AI-based video analytics solution capable of video recording, transcoding, real-time inference, etc. Powered by NVIDIA® Jetson AGX Xavier™ system-on-module (SOM), it comprises of an 8-core ARM CPU and NVIDIA® Volta GPU with 512 CUDA cores and 64 Tensor cores that offer 11 TFLOPS FP16 or 22 TOPS INT8 computing power. Benefiting from the low-power design of NVIDIA® Jetson AGX Xavier™, NRU-120S offers significant inference performance while consuming only 30W of power. The efficient power design and the compact form factor make it the perfect edge AI solution for both stationary and mobile applications. NRU-120S offers four 802.3at Gigabit PoE+ ports; each port can supply up to 25.5W of power to PD devices such as IP cameras and industrial cameras. By integrating PoE+ connectivity, a wide range of NVIDIA® AI tools, and modern deep learning frameworks, NRU-120S pushes real-time image and video inference to the edge. It is a one-stop AI-based video analytics solution that offers 802.3at PoE+ camera connections, video decoding, and edge AI inference.
