Metaphase Technologies Inc. Product
“To bring innovation and inspiration to the global automated vision inspection industry, that improves the health, safety, and security of our communities.”
Product filed under:
Lasers & Lighting Equipment Lasers & Lighting Equipment

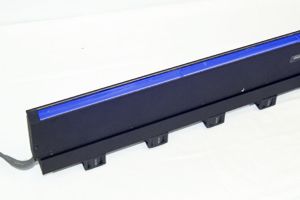

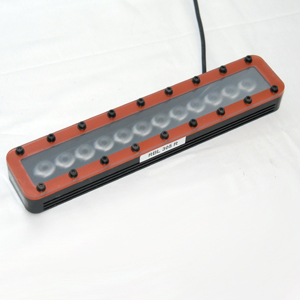

The Metaphase RoboLight provides high intensity direct illumination comparable to MetaBright Front Lights for IP67 rated environments and large work envelopes.
FEATURES:
• RoboLights are available in sizes: 2.5 x 6 inch, 2.5 x 12 inch, 2.5 x 24 inch
• Lens Options for Wide, Narrow, and Line
• Available Wavelengths: Red(630nm), Green (530nm), Blue (455nm), White (6000° Kelvin / Highest Intensity), Infrared (850nm), UV ( 395, 365), RGB(625nm / 530nm / 470nm 3 die packaging technology)
• Connectorized and convenient 24VDC power requirements featuring an on-board and integrated constant current driver
• Rugged Housings for industrial work envelopes
• Polarization Option, Built-In Strobe Option ,Housing Options: IP67 Black Anodized Aluminum IP67 NEMA 4X Stainless Steel
• IP67 for Washdown Environments , Tapped holes for mounting
• Applications: Direct lighting to illuminate a target for feature recognition, Lighting for us on robotic manipulators, Label printing inspection Long range illumination, General illumination of wide or tall vision targets, Steel Factory Environments, Food Processing Environment, Hazardous & Washdown Environments.
