Modular aluminum round profile tube system with satin anodized finish. Available in plain, slotted, double, SW, and DW configurations at Ø28mm for flexible industrial framing, trolleys, and material handling structures.
Tubular Framing System
Metalgear's TFS Tubular Framing System is a modular aluminum round profile tube solution designed for lightweight industrial structures, workstation frames, trolleys, and material handling applications. All profiles meet GB5237-2008 standard tolerances with a satin anodized surface finish, and are available in 6000mm standard lengths for domestic delivery and 5800mm for international shipment.

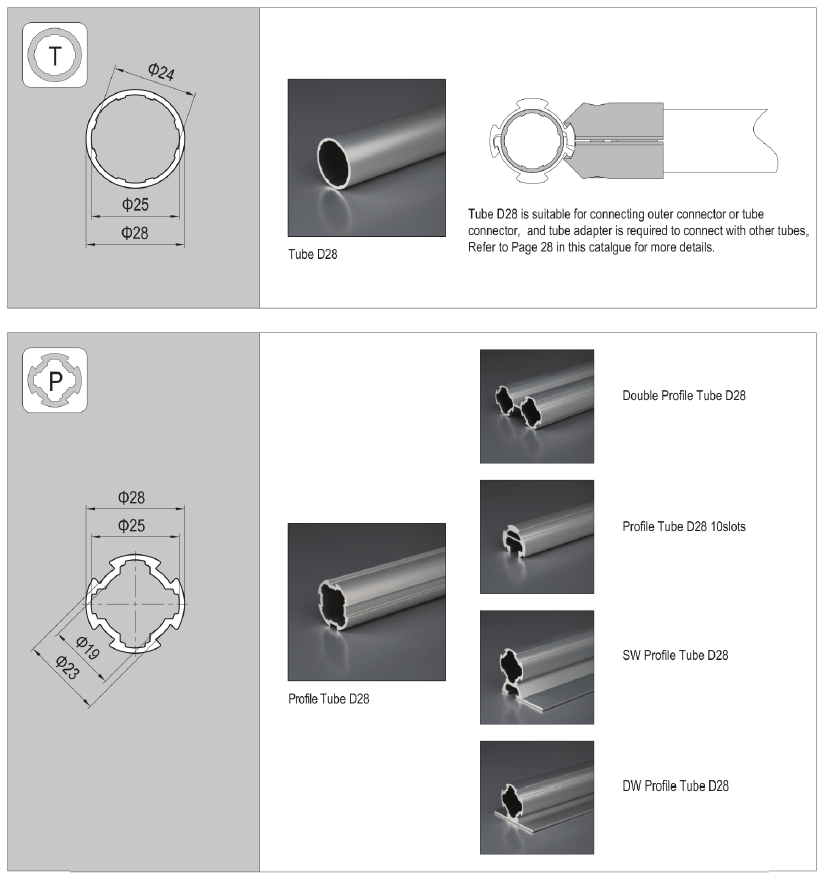

Available tube profiles:

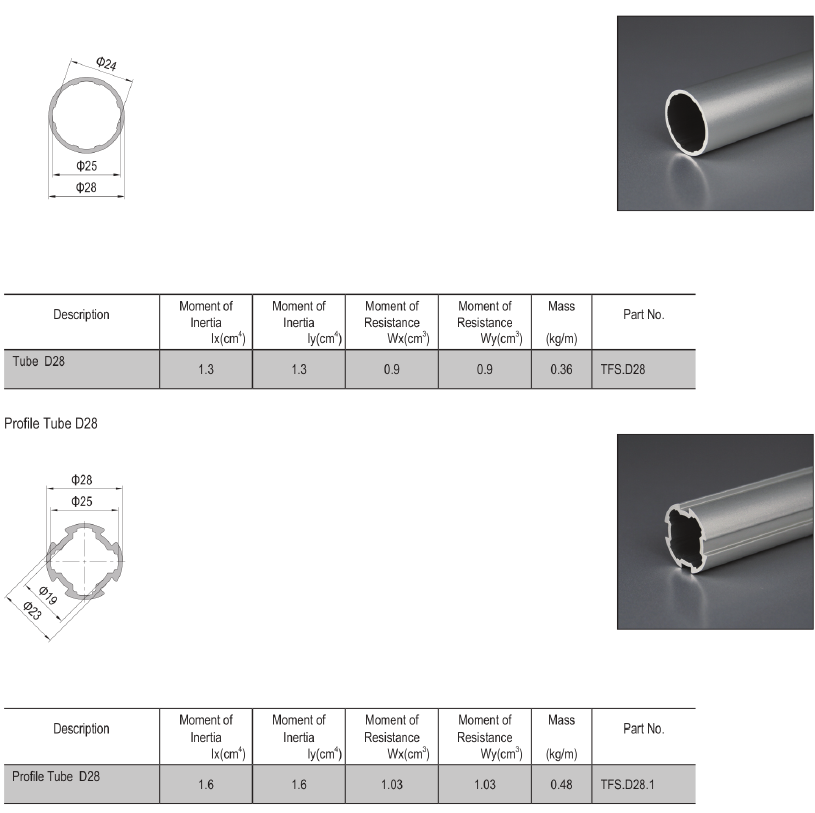

- Tube D28 – plain round aluminum tube, Ø28 mm outer diameter, for standard framing and guardrail construction. Compatible with outer connectors and tube connectors.
- Profile Tube D28 – round profile tube with internal slot geometry for connector attachment
- Double Profile Tube D28 – twin-tube profile for increased structural rigidity
- Profile Tube D28 10-slot – primarily used for connecting panels or castors with plate; compatible with outer connector only
- SW Profile Tube D28 – single wing profile for suspending material boxes; inner connector only
- DW Profile Tube D28 – double wing profile for suspending material boxes; inner connector only
Industries Served
The TFS Tubular Framing System is used across automotive, electronics manufacturing, food and beverage, pharmaceutical, and general industrial automation environments where lightweight modular framing and material flow structures are required.
Metalgear Engineering supplies and integrates TFS round profile tubes as part of complete custom automation and facility solutions.
