The MAS Aluminum Square Profile System offers a complete range of modular extruded profiles with 10mm T-slot, from compact 40×40 to heavy-duty 120×120mm sections. Available in standard, light, and heavy wall configurations at the an excellent price!
Aluminum Square Profile System at a Low Cost

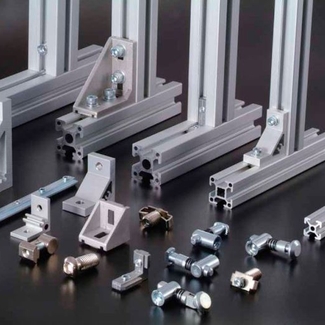

Metalgear's MAS Aluminum Square Profile System is a modular T-slot extrusion platform designed for building medium and heavy-duty industrial structures. With a 10mm slot width and profiles ranging from 40×40 to 120×120mm, the system covers a wide range of load and size requirements — from compact workstation frames to large machine enclosures.

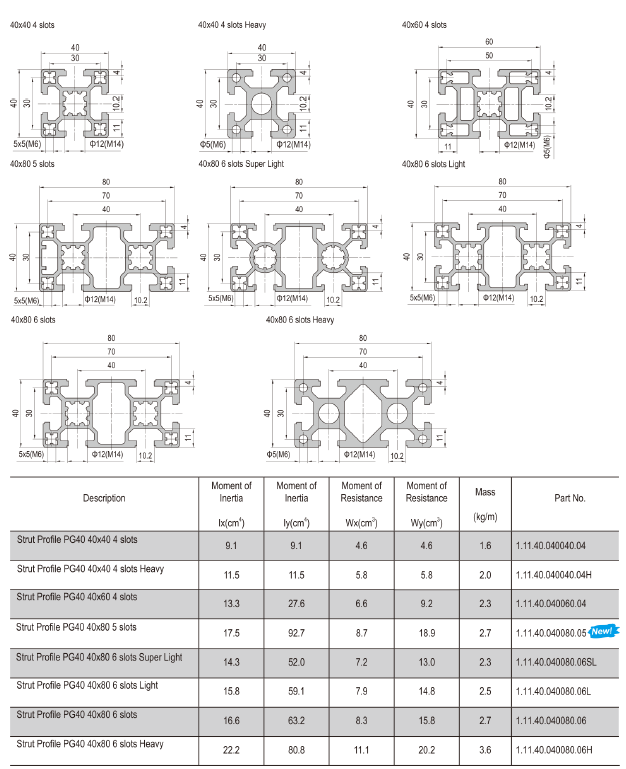

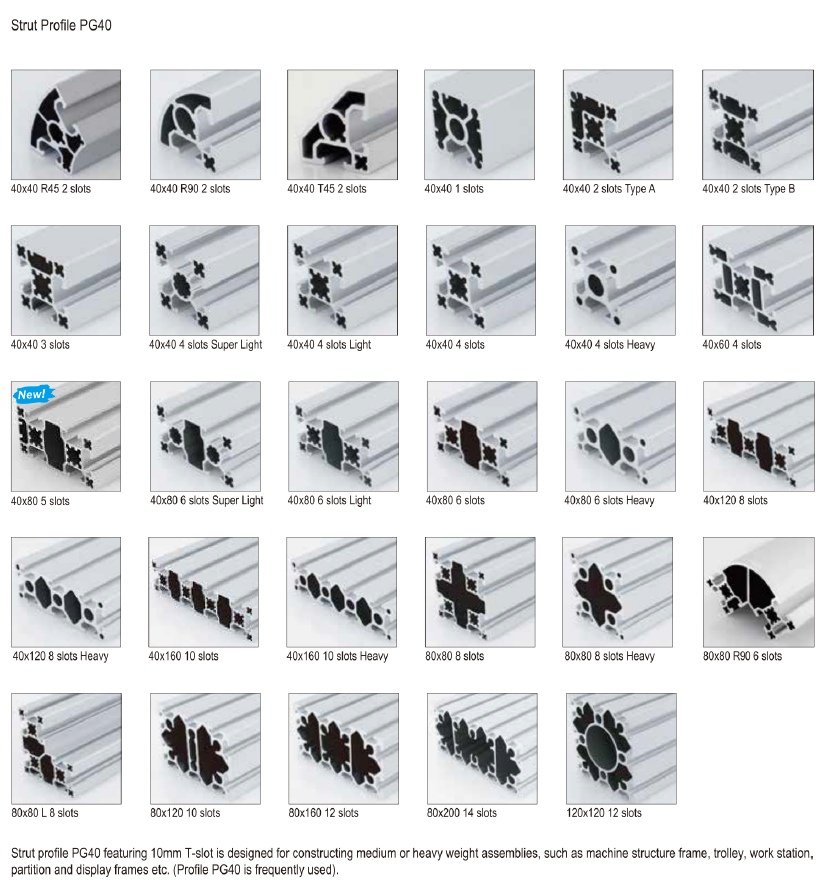

Profiles available in this system:
- 30X30mm - 1 to 4 slots (Super Light, Light, Standard, Heavy)
- 40×40mm – 1 to 4 slots (Super Light, Light, Standard, Heavy)
- 40×60mm – 4 slots
- 40×80mm – 5 to 6 slots (Super Light, Light, Standard, Heavy)
- 40×120mm – 8 slots (Light, Standard, Heavy)
- 40×160mm – 10 slots (Standard, Heavy)
- 80×80mm – 6 to 8 slots (Standard, Heavy, L, R90)
- 80×120mm – 10 slots
- 80×160mm – 12 slots
- 80×200mm – 14 slots
- 120×120mm – 12 slots
Industries Served
The MAS Square Profile System is used across automotive, food and beverage, electronics manufacturing, pharmaceutical, and general industrial automation applications.
Metalgear Engineering supplies, cuts, and integrates MAS aluminum profiles as part of complete custom automation solutions. Contact us to discuss your structural framing requirements.
