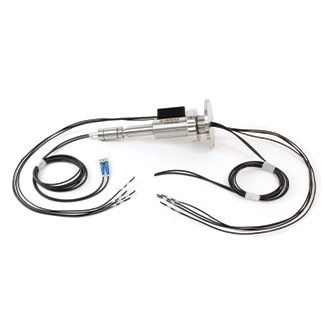

ROTOCON Brushless Ultra High-Speed Slip Rings | UHS Series

• Offered in 1, 4, 8, and 12 electrical channel configurations.
• Capable of rotational speeds of up to 40,000 RPM without any measurable electrical noise
• Brushless contact features no wear points and does not require maintenance or adjustment over time.

ROTOCON ultra high-speed slip rings are ideal for applications with demanding operating speeds between 10,000 and 40,000 RPM.  The ROTOCON UHS Series of ultra high-speed slip rings is offered in standard configurations up to 12 electrical channels, capable of providing up to 500 milliamps per contact.

ROTOCON ultra high-speed slip rings remain unaffected by rotational speeds and provide a low and stable electrical connection between stationary and rotating equipment. They are capable of providing excellent signal integrity for measurement devices including stress / strain gauges, torque, temperature, displacement, pressure, vibration, acceleration, oscillation, shock, force, and more.

ROTOCON ultra high-speed slip rings are commonly used for testing and validation of high-speed equipment such as electric motors, turbocompressors, propellers, electric motors, powertrain systems, and machine tools.
For applications which operate at lower speeds (less than 10,000 RPM), please see our MM Series of high-speed ROTOCON brushless slip rings.
