Laser Components USA, Inc. Product
LASER COMPONENTS USA has the ability to offer FLEXPOINT laser modules (at different wavelengths and power) and colorPol dichroic glass polarizers (UV, VIS, and IR range) as single pieces or series production.
Product filed under:
Lasers & Lighting Equipment Lasers & Lighting Equipment

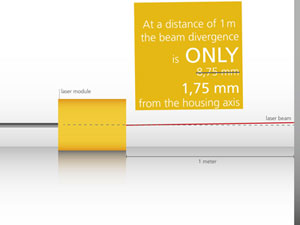

In response to the continuing demand of high quality laser sources at low cost, LASERCOMPONENTS developed a coaxially aligned, broad operating temperature range laser module in one of the smallest mechanical dimensions. The LC-LMD-650-01-T60-AX module is part of the LC-LMD series producing an optical power output of less than 1 mW. Industrial OEM applications The LC-LMD-650-01-T60-AX laser modules are manufactured to easily align with optical systems in industrial positioning, alignment and measurement applications. The output beam tolerance is less than 0.1 degrees or 1.75 mm/m, which is at least 5 times more precise than most standard products. The industrial package design tolerates a broad ambient operating temperature rangefrom -5 degrees C to 60 degrees C, features a compact design of 9 mm long and 4 mm diameter, and easily connects via the 55 mm external flying leads. Product specifications The module is eye safe (class II) with an optical power output less than 1 mW requiring low operating current of 15 mA at 25 mW. All LASER COMPONENTS’ low-cost OEM modules support the embedded Automatic Power Control (APC) that keeps the laser’s output constant, increases the life-time and allows for an easy-to-integrate design.
