JVL A/S Product

ServoStep Integrated Stepper Motor

Model: MIS171-176

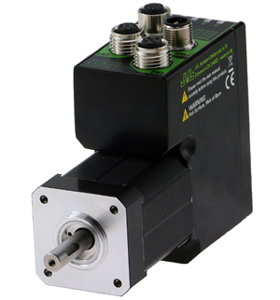

Image of ServoStep Integrated Stepper Motor

MIS171-MIS176 QuickStep - NEMA17 Programmable Integrated ServoStep Motors with Closed-Loop, Ethernet, multiturn encoder

QuickStep, the Integrated ServoStep Motors from JVL.

All in one smartmotor with integrated controller. A wealth of possibilities with this new NEMA17 stepper with closed-loop servo-operation up to 3000RPM, It offers the highest microstepping resolution, position/velocity/torque servo-performance up to 0.8Nm.

  • MIS171 - 0.36Nm
  • MIS173 - 0.56Nm
  • MIS176 - 0.80Nm

Available with CANbus, RS485, SSI, Industrial Ethernet Profinet, Ethercat, Ethernet/IP, Powerlink, Ethernet TCP, Sercos III , Absolute multiturn encoder, PLC 8IOA, clock/direction and STO.

Velocity resolution 0,01RPM for extreme low speed operation and 409600 step/rev for highest precision. Different shaft diameter, brakes and high IP protection make it ideal for machine adjustment or other demanding applications.

  • Closed-Loop Operation
  • Real Torque Control Mode
  • PLC build in
  • Absolute Encoder
  • Top or rear end M12 or M23 connector
  • 409600 step/rev
  • High Resolution Encoder
  • Operation Control Modes


  • STO connector
  • Double Shaft & Rear brake
  • CANopen
  • Industrial Ethernet
  • Wifi/BT, Wireless Ethernet

Note that the controller is also available as separate unit - SMC66.
