DOLD Multifunctional safety module UG 6980
Model: DOLD Multifunctional safety module UG 6980
The multifunctional safety module UG 6980 provides protection of men and machines by enabling and disabling a safety circuit. It is used together with e-stop buttons, safety gates, light curtains with self testing (type 4) to IEC/EN 61496-1, 2-hand buttons
Dold Multifunctional Safety Module UG 6980
Product description
The multifunctional safety module UG 6980 provides protection of men and machines by enabling and disabling a safety circuit. It is used together with e-stop buttons, safety gates, light curtains with self testing (type 4) to IEC/EN 61496-1, 2-hand buttons on presses for metal processing and productions machines with dangerous closing movements (type III C to EN ISO 13851) and safety mats, edges and tape switches. Simply select 1 out of 6 safety functions on rotary switches - ready. This reduces divers types of safety modules in stock and simplifies your disposition.
Technical specifications
| Width: | 22,5 mm |
| Cat. / PL acc. to EN ISO 13849-1: | 4/e |
| SIL acc. to IEC/EN 62061: | 3 |
| Nominal voltage: | DC |
| Thermal current Ith max.: | 8 A |
| 1- / 2-channel: | 2 |
| Application: | Emergency stop, Light barrier, Safety mat, Safety gate, Two-hand |
| Cross fault detection: | Yes |
| Connection: | Pluggable screw terminals, Pluggable cage clamp terminals, Pluggable cage clamp terminals 2-wire |
| Safe output contacts, redundant NO contacts: | 2 |
| Approvals: | UL |
| Type: | UG 6980 |
Other Products from Industrial Safety Controls Inc
DOLD Multifunctional safety timer with instantaneous contacts UG 6960
The multifunction safety timer UG 6960 provides protection of men and machines by enabling and disabling a safety circuit. This is done by the adjusted time delay function. Simply select 1 out of 5 delay functions with a rotary switch

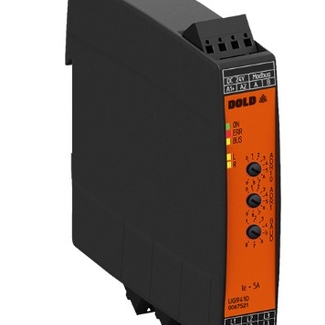

Smart motorstarter, for Modbus UG 9410
