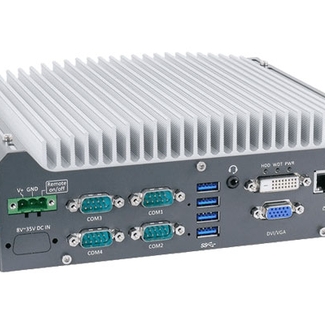

NEOUSYS NUVO-7501 NUVO-7505D Compact, Coffee Lake Intel® Core™ i7/i5/i3 Fanless Computer
| System | |
| Processor | Intel® Core™ i7-8700T 6-Core (2.4/4.0 GHz, 12M, 35W TDP) Intel® Core™ i5-8500T 6-Core (2.1/3.5 GHz, 9M, 35W TDP) Intel® Core™ i3-8100T 4-Core (3.1 GHz, 6M, 35W TDP) Intel® Core™ i7-9700TE 8-Core (1.8/3.8 GHz, 12M, 35W TDP) Intel® Core™ i5-9500TE 6-Core (2.2/3.6 GHz, 9M, 35W TDP) Intel® Core™ i3-9100TE 2-Core (2.7 GHz, 4M, 35W TDP)* |
| Chipset | Intel® H310 Platform Controller Hub |
| Graphics | Integrated Intel® HD Graphics 630 |
| Memory | Up to 32GB SO-DIMM DDR4 (one SO-DIMM slot) |
| I/O | |
| Ethernet | 2x GbE - 1x Intel® I219 and 1x I210 |
| Video | 1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution |
| USB | 4x USB 3.1 Gen1 |
| Serial | 2x RS-232/422/485 2x RS-232 |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Expansion | |
| Mini PCIe | 1x full-size mini PCIe socket |
| M.2 | 1x M.2 2242 B key socket with front-accessible SIM socket |
| Storage | |
| SATA | 1x internal SATA for 3.5" HDD or 2.5" SSD/HDD |
| M.2 | 1x M.2 2280 SATA interface |
| Power Supply | |
| Input | 1x 3-pin power connector for 8~35V DC |
| Adapter | 120W Power Adapter (optional) |
| Remote Ctrl & Status Output | 1x 10-pin (2x5) pin header for remote on/off control and status LED output |
| Mechanical | |
| Dimensions | 10.04" (W) x 6.81" (D) x 2.99" (H) |
| Weight | 5.9 lbs including SSD and RAM |
| Mounting | Wall Mount DIN-Rail Mount (optional) |
| Environmental | |
| Operating Temperature | -25°C ~ 60°C ** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| Certifications | CE/FCC Class A, according to EN 55022 & EN 55024 |
