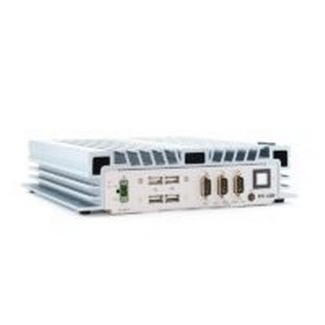

| System | |
| Processor | Intel® Core™ i7-8700T 6-Core (2.4/4.0 GHz, 12M, 35W TDP) Intel® Core™ i5-8500T 6-Core (2.1/3.5 GHz, 9M, 35W TDP) Intel® Core™ i3-8100T 4-Core (3.1 GHz, 6M, 35W TDP) Intel® Core™ i7-9700TE 8-Core (1.8/3.8 GHz, 12M, 35W TDP) Intel® Core™ i5-9500TE 6-Core (2.2/3.6 GHz, 9M, 35W TDP) Intel® Core™ i3-9100TE 2-Core (2.7 GHz, 4M, 35W TDP)*
|
| Chipset | Intel® Q370 |
| Graphics | Integrated Intel® UHD Graphics 630 |
| Memory | Up to 64GB SO-DIMM DDR4 |
| I/O | |
| Ethernet | 2x GbE |
| Video | 3x DisplayPort 1.2 (Max. 4096 x 2304 @ 60Hz) |
| USB | 4x USB 3.1 Gen 1 4x USB 2.0 |
| Serial | 2x RS-232 1x RS-232/422/485 |
| Audio | 1x Audio Out 1x Mic In |
| Aux I/O | – |
| Storage | |
| SATA | 2x SATA for 2.5″ SSD/HDD, supporting RAID 0/1 |
| M.2 | 1x M.2 M Key, 2242/2260/2280 (PCIe x4 & SATA III) |
| Expansion | |
| Mini PCIe | 1x full-size mini PCIe socket |
| M.2 | 1x M.2 E Key 2230 (PCIe x1, USB 2.0 & CNVi) |
| Power Supply | |
| Input | 12/19~28V DC |
| Power Consumption (Typical) | 0.65A @ 24V (15.7W) |
| Adapter | 160W AC Adapter (optional) |
| Mechanical | |
| Dimensions | 9.37″ (W) x 9.64″ (D) x 2.40″ (H) |
| Weight | 7.09 lbs including SSD and RAM |
| Mounting | Wall Mount |
| Environmental | |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -20°C ~ 75°C |
| Humidity | 5~95% @ 40°C, Non-condensing |
| Vibration | 1 Grms, IEC 60068-2-64, Random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes |
| Shock | 20 G, IEC 60068-2-27, Half Sine, 11 ms Duration |
| Certifications | CE/FCC Class A |
