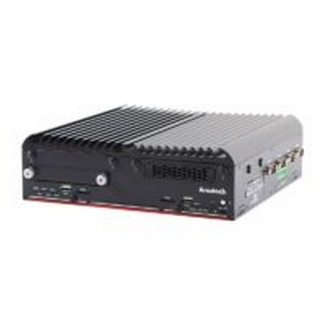

MERA-3100 Compact Intel Core Fanless Computer 8/9th gen. Intel Core CPUs, up to 8 cores 3x GbE ports with optional PoE or additional
| System | |
| Processor |
Intel® Core™ i7-8700T 6-Core (2.4/4.0 GHz, 12M, 35W TDP) Intel® Core™ i7-9700TE 8-Core (1.8/3.8 GHz, 12M, 35W TDP) |
| Chipset | Intel® Q370 |
| Graphics | Integrated Intel® UHD Graphics 630 |
| Memory | Up to 64GB SO-DIMM DDR4 |
| I/O | |
| Ethernet | 3x GbE |
| Video | 1x DisplayPort (Max. 4096 x 2160) 1x DVI-D (Max. 1900 x 1200) 1x VGA (Max. 1900 x 1200) |
| USB | 6x USB 3.2 2x USB 2.0 |
| Serial | 6x RS-232/422/485 |
| Audio | 1x Audio Out 1x Mic In |
| GPIO | 8x Isolated DI and 8x Isolated DO, 2×9-pin terminal block |
| Storage | |
| SATA | 1x internal SATA for 2.5″ SSD/HDD 1x removable SATA for 2.5″ SSD/HDD Supporting RAID 0, 1, 5, 10 |
| CFast | 2x CFast sockets (shared with mSATA) |
| Expansion | |
| Mini PCIe | 2x full-size mini PCIe sockets 2x full-size mini PCIe sockets (shared with CFast) |
| Power Supply | |
| Input | 9~48V DC with 3-pin terminal block connector |
| Power Mode | AT/ATX |
| Power Ignition | Power Ignition Sensing |
| Protection | Over Voltage Protection(OVP) up to 52V Reverse Voltage Protection (RVP) up to -48V Over Current Protection (OCP) 20A |
| Adapter | 120W AC Adapter (optional) |
| Mechanical | |
| Dimensions | 9.50″ (W) x 9.06″ (D) x 3.65″ (H) |
| Weight | 9.26 lbs including SSD and RAM |
| Mounting | Wall Mount |
| Environmental | |
| Operating Temperature | -40°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10~95%, Non-condensing |
| Vibration | 5 Grms, 5-500 HZ, 3 axis |
| Shock | 50 Grms, Half-sine 11 ms |
| Certifications | CE/FCC Class A |
