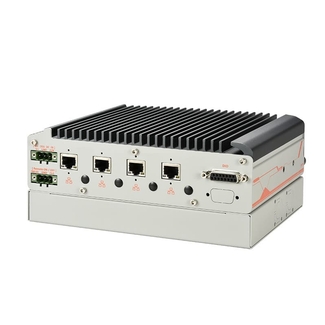

Nuvo-2600 Intel® Celeron® J1900 Fanless Computer w/ Expansion Cassette Dual-Core Atom x6211E Processor Expansion cassette for single PCIe x4 card or 2500 watt-second
| System | |
| Processor | Intel® Elkhart Lake Atom® x6425E (2.0/3.0 GHz, 1.5M) |
| Chipset | N/A |
| Graphics | Integrated Intel® UHD Graphics |
| Memory | Up to 32GB SO-DIMM DDR4 |
| I/O | |
| Ethernet | 4x GbE (Intel® I210) with screw-lock |
| PoE | Optional IEEE 802.3at PoE+ on ports 1-4 (Nuvo-2600E-PoE) |
| Video | VGA and DVI dual display outputs via one DVI-I connector |
| USB | 2x USB 2.0 with screw-lock 1x USB 3.1 (5 Gbps) with screw-lock |
| Serial | 1x isolated RS-485 port with 15 kV ESD protection (COM1) 3x 3-wire RS-232 (COM2/3/4) |
| DIO | 4-CH isolated DI and 4-CH isolated DO |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Storage | |
| SATA | 1x front-accessible HDD tray for 2.5″ HDD/ SSD installation (up to 15mm height) |
| M.2 | 1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation |
| Expansion | |
| PCI Express | 1x PCIe x4 slot @ 2-lane PCIe 3.0 signal in Cassette module (Nuvo-2600E only) |
| Mini PCIe | 1x full-size mini PCI Express socket with PCIe and USB 2.0 signal 1x full-size mini PCI Express socket with USB 2.0 signal |
| M.2 B Key | 1x M.2 3042/3052 B key (USB 3.1 + USB 2.0) for 4G/ 5G module with dual internal micro SIM sockets |
| Power Supply | |
| Input | 8-35V DC with 3-pin terminal block connector |
| Adapter | 60W Power Adapter (optional) |
| Mechanical | |
| Dimensions | 8.07″ (W) x 6.14″ (D) x 3.39″ (H) 205 mm (W) x 156 mm (D) x 86 mm (H) |
| Weight | |
| Mounting | Wall Mount (optional) |
| Environmental | |
| Operating Temperature | -25°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| Certifications | CE/FCC Class A, according to EN 55032 & EN 55024 |
