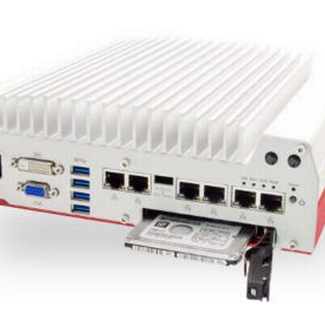

Intel® 12th -Gen Core™ i9/ i7/ i5/ i3 Compact Fanless Computer with 4x 2.5GbE, 4x USB3.2 and 1x Hot-swappable HDD
| System | |
| Processor | 12th Generation Intel® Alder Lake-S Series CPU: - Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W - Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W - Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W - Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W - Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W - Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W - Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W - Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W - Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W - Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W - Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W - Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W |
| " data-gt-translate-attributes="[{">Chipset | Intel R680E " data-gt-translate-attributes="[{">Chipset |
| Graphics | Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| Memory | 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB |
| TPM | Supports dTPM 2.0 |
| I/O | |
| Ethernet | 4x 2.5GBASE-T Ethernet ports by Intel® I226-IT GbE controllers |
| PoE+ | Optional IEEE 802.3at PoE+ PSE for 4x2.5GbE ports 100 W total power budget |
| Video | 1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| USB | 4x USB 3.2 Gen1 (5 Gbps) ports 2x USB 2.0 ports |
| Serial | 1x software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Expansion | |
| Mini PCI Express | 2x full-size mini PCI Express sockets with internal SIM sockets |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Storage | |
| SATA | 1x hot-swappable 2.5" HDD/ SSD tray for 7mm HDD/ SSD |
| M.2 NVME | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Power Supply | |
| Input | 1x 3-pin pluggable terminal block for 8 to 48V DC input with optional ignition power control |
| Mechanical | |
| Dimensions | 212 mm (W) x 165 mm (D) x 63 mm (H) |
| Weight | 2.5kg |
| Mounting | Wall-mount (standard) or DIN-rail mount (optional) |
| Environmental | |
| Operating Temperature | with 35W CPU -25°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90%, non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
