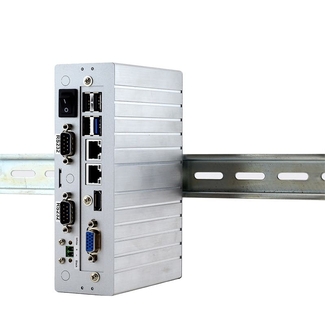

IPC-301 Quad-Core Intel® Celeron® J1900 Fanless Computer with PCI Slot Intel® Celeron® J1900 Quad-Core Bay Trail J1900 processor. PCI Expansion Slot Supports one PCI
| System | |
| Processor | |
| Chipset | Intel® Express Chipset |
| Graphics | Integrated Intel® Graphics |
| Memory | 4GB SO-DIMM DDR3 |
| I/O | |
| Ethernet | 2x GbE |
| Video | 1x VGA 1x HDMI |
| USB | 2x USB 3.0 4x USB 2.0 |
| Serial | 4x RS-232 2x RS-232/422/485 |
| Audio | 1x Audio Out |
| Expansion | |
| PCI | 1x PCI (max. length 168mm) |
| Mini PCIe | 2x Mini PCIe |
| Storage | |
| SATA | 1x SATA |
| mSATA | 1x mSATA |
| Power Supply | |
| DC Input | 9~36V DC Input |
| Power Adapter | 12V/5A AC Power Adapter |
| Mechanical | |
| Dimensions | 3.94″ (w) x 6.89″ (d) x 7.28″(h) |
| Weight | 4.5 lbs |
| Mounting | Wall Mount |
| Environmental | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -10°C ~ 60°C |
| Humidity | 0%~95% , non-condensing |
| Vibration | Not Available |
| Shock | Not Available |
| Certifications | CE/FCC |
