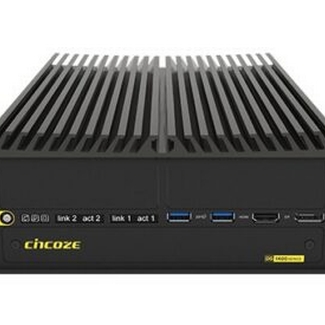

DS-1400 Cincoze DS-1400, DS-1401, DS-1402 12th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer
| System | |
| Processor | 12th Generation Intel® Alder Lake-S Series CPU: - Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W - Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W - Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W - Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W - Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W - Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W - Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W - Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W - Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W - Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W - Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W - Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W |
| Chipset | Intel R680E Chipset |
| Memory | 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB |
| BIOS | AMI BIOS |
| Graphics | Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| Audio | Realtek® ALC888, High Definition Audio |
| I/O | |
| Ethernet | 2x GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 |
| Video | 2x DisplayPort, supporting 4096 x 2160 1x HDMI, supporting 4096 x 2160 1x VGA, supporting 1920 x 1080 |
| USB | 2x 10Gbps USB 3.2 Gen2, Type A 4x 5Gbps USB 3.2 Gen1, Type A 2x 480Mbps USB 2.0, Type A |
| COM | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| PS/2 | 1 x PS/2, 6 Pin Mini-DIN Female Connector |
| Expansion | |
| Mini PCI Express | 3x Full-size Mini-PCIe Socket |
| SIM Socket | 2x SIM Socket |
| CMI (Combined Multiple I/O Interface) | 2 x High Speed CMI Interface for optional CMI Module Expansion 2 x Low Speed CMI Interface for optional CMI Module Expansion |
| CFM (Control Function Module) Interface | 1 x CFM IGN Interface for optional CFM-IGN Module Expansion |
| Storage | |
| SSD/HDD | • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) • 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 ) |
| mSATA | 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) |
| M.2 SSD | 1x M.2 Key M Type 2280 Socket, Support PCIe Gen3 x4 NVMe SSD or SATA SSD ( SATA 3.0 ) |
| mSATA | 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) |
| RAID | Support RAID 0/1/5/10 |
| Power Supply | |
| Power Type | AT/ATX |
| Power Input | 9 - 48VDC, 3-pin Terminal Block |
| Mechanical | |
| Dimensions | 227 x 261 x 88 mm |
| Weight | 4.5kg |
| Mounting | Wall |
| Environmental | |
| Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 50°C (With External Fan Kit) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 95%RH @ 70°C (non-Condensing) |
| Vibration | MIL-STD-810G |
| Shock | MIL-STD-810G |
