D4007-MA20
Model: D4007-MA20-i3, D4007-MA20-i5, D4007-MA20-i7, D4007-MA20-i9

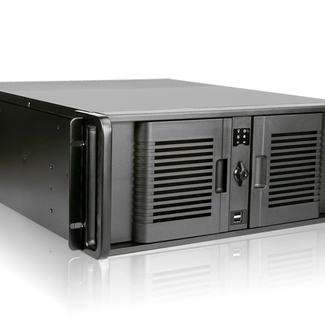

D4007-MA20 4U rackmount industrial computer is available with a 12th or 13th generation Intel Core i3, i5, i7, or i9.
| System 19" Rackmount | |
| CPU | Intel® 12th and 13th Gen Processors up to 125W TDP (Max Turbo Power 125W) Socket LGA 1700 (Formerly Alder Lake-S and Raptor Lake-S) |
| Chipset | Q670E |
| BIOS | - |
| Expansion | |
| PCIe | 2x PCIe 4.0 x16(x16/0 or x8/x8) 2x PCIe 4.0 x4 2x PCIe 3.0 x1 |
| PCI | 1x PCI |
| M.2 | 1x M.2 E-key, 2230 (USB2.0 and PCIe 3.0 x1 CNVi WiFi) 1x M.2 B-key, 3042/3052 (USB3.2/2.0 and PCIe 3.0 x1 for 5G Cellular) |
| Memory | |
| Technology | Dual-Channel DDR5-5600 MHz (13th Gen.) Dual-Channel DDR5-4800 MHz (12th Gen.) |
| Max. | 128GB |
| Socket | 4x UDIMM |
| SATA | |
| SATA3 | 4x SATA3 (6.0Gb/S) |
| RAID | RAID 0/1/5/10 |
| M.2 | 1 M.2 M-Key, 2242/2280 (PCIe 4.0 x4 NVMe and SATA) 1 M.2 M-Key, 2242/2280 (PCIe 4.0 x4 NVMe) |
| Front I/O | |
| USB | 2x USB 2.0 |
| Rear I/O | |
| VGA | 1x VGA (1920 x 1200 at 60Hz) |
| HDMI | 1x HDMI 2.0b (4096 x 2160 at 60Hz) |
| DisplayPort | 1x DisplayPort 1.4a (4096 x 2304 at 60Hz) |
| Ethernet | 3x 2.5GbE (2x I225-V, 1x I225-LM (iAMT)) |
| USB | 6x USB 3.2 Gen 2 (10 Gb/s) |
| Serial | 2x RS-232/422/485 |
| Audio | 1x Audio Out 1x Audio In 1x Mic In |
| Internal I/O | |
| USB | 1x USB header for 2x USB 3.2 Gen 1 (5 Gb/s) 1x USB header for 2x USB 2.0 (used for 2x front USB 2.0 ports) |
| Serial | 4x RS-232 |
| GPIO | 8-bit GPIO |
| TPM | Intel fTPM 2.0 (PTT) Trusted Computing Firmware Onboard NUVOTON TPM v2.0 |
| Mechanical | |
| Dimensions | 19″ (W) x 7″ (H) x 20.8″ (D) |
| Weight | – |
| Mounting | Rack Mount |
| Environmental | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -20°C ~ 85°C |
| Power Requirements | |
| Input PWR | ATX PWR (8 + 24) |
| Power On | AT/ATX Supported – AT : Directly PWR on as power input ready – ATX : Press button to PWR on after power input ready |
| OS Support | |
| Windows | Windows 11 Pro (64-bit) Windows 10 IoT LTSC Enterprise 2019 or 2021 |
| Linux | Debian 11.4 Fedora 36-1.5 OpenSUSE 15.4 Ubuntu 22.04 VMWare ESXi 8 OpenBSD 7.1 CentOS 9 |
