IMAGO Technologies develops and manufactures VisionBoxes, an image processing hardware for the analysis of camera images and communication with the machine. We have focused on the perfect connection of the cameras, image processing periphery and machine control to the VisionBox/Cam; Long-term availability of over 10 years through carefully chosen components; Real-time capability from the subcomponent under Windows up to the Real-Time OS; Extensive engineering support during the layout of the VisionBox/VisionCam and Macro systems which combine our hardware with individual middleware, including e.g. Halcon Embedded.
Product filed under:
Control Components, Controls, and Frame Grabbers & Imaging Boards Control Components, Controls, Frame Grabbers & Imaging Boards, and I/O
See More

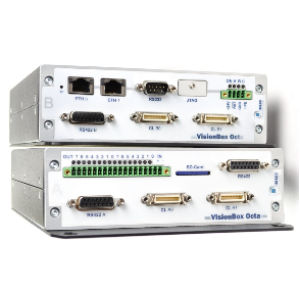

The VisionBox OCTA is intended for the usage of high-performance image processing applications in real time. The standard interface for cameras is Camera Link: Up to 2x Camera Link Full/Medium or 4x Camera Link Base connections are available. For preprocessing, the Camera Link board can be used in an output configuration like a camera. Via two Ethernet ports, data can be exchanged with the machine’s main computer or the IT infrastructure of the production. The KeyStone processors with the real-time operating system SYS/BIOS range up to 160 GFLOPS – 320 GMACS for complex algorithms. The OCTA is programmed in C/C++ using the Code Composer Studio Tools based on the Eclipse framework from Texas Instruments. Using the JTAG-interface, every single step inside of the processor can be analyzed. As an introduction to those powerful VisionBoxes, we offer training services and example programs.
