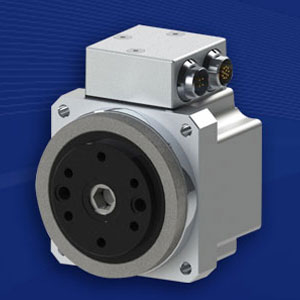

Dual Absolute Encoders version of the FHA-C Mini Actuator
Model: FHA-C Mini actuator
Introducing Dual Absolute encoder versions of the FHA-C mini actuator. Featuring BiSS-C bi-directional communication for both encoders, the dual encoders are incorporated in essentially the same package size as the long-standing FHA-C mini single incremental encoder version. Without increasing the size, the dual absolute encoder offers single turn absolute position at the output, without the need for battery back-up.
Panel mount connectors come standard, and customers can choose between 4 exit options. Together, these new features offer the design engineer more flexibility and reliability.
The FHA-C mini Series is a family of extremely compact actuators that deliver high torque with exceptional accuracy and repeatability. The actuator combines a high precision Harmonic Drive(R) gear component with a pancake brushless servo motor. A single turn 14bit (16384 cpr) gear output encoder has been integrated along with a single turn 14bit (16384 cpr) motor input encoder providing a true absolute encoder that does not require a battery within 360° of rotation of the output. Typical multi-turn encoders monitoring the motor input shaft require a battery to store the current position when power is lost to the system; however, the dual absolute encoder overcomes this need. In other words, No Battery Required. When power is restored the actuator knows its position.
Key Features:
- A pair of Single Turn Absolute Encoders on both Input and Output Sides
- Compact - significantly shorter than our multi-turn absolute encoder version
- Minimal length difference compared to our incremental encoder version
- Output Encoder 14bit (16384 cpr) resolution
- Input Encoder 14bit (16384 cpr) resolution
- BiSS-C bi-directional communication for both encoders
- Compatible Drive: Copley Controls BEL or BPL
- Wide encoder voltage range (4.75-30)
- Robust Cross Roller Output Bearing Supports High Loads
- High torque/weight and torque/volume ratio
- Panel mount connectors
- Harmonic Drive(R) CSF zero backlash gear
