Nano Charging Contacts

Conductix-Wampfler

Image of Nano Charging Contacts

The Nano series is our compact charging contacts solution with up to a 75% smaller collector and up to a 66% smaller base place when compared to our competitors. Nano is a 20 - 300amp solution with the capability of being engineered to 600+ amps. With a chamfered edge design, the Nano Series ensures that only long-life wear-resistant components meet each other. The Nano Series Charging Contacts is a compact, modular design with a misalignment tolerance of 5mm in the x and y-axis. This solution is ideal for applications where space is a premium.

The Nano series will be the ideal solution for the following market applications (where space is limited):

  • Manufacturing
  • Warehouse and Distribution
  • Automated Guided Vehicles (AGVs)
  • Automated Guided Carts (AGCs)
  • Autonomous Mobile Robots (AMRs)
  • Shuttles
  • Amusement Park Rides
  • Service Robots
  • Custom Engineered Configurations

Product Data:

  • Design compliant with UL 2231-2 Standard for electric vehicle supply circuits
  • 20 - 600-amp solution
  • Single and two-phase systems
  • Misalignment tolerance: x and y-axis 5 mm | Z-axis 2 mm
  • Voltages up to 60 VDC / 25 VAC
  • Optional pilot contacts

Other Products from Conductix-Wampfler

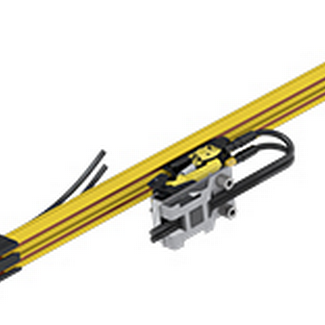

Nexus BB Image
