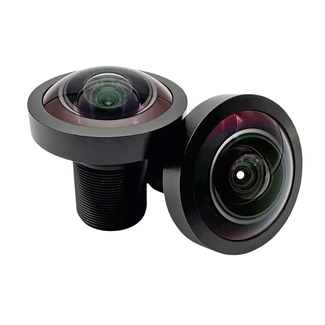

2mm Fisheye M12 Lens
Model: CIL281-F1.8-M12A650, CIL281-F1.8-M12ANIR
The CIL281 is a 2mm EFL M12 Fisheye lens which provides 200°@6.4mm image circle.
190°@6.4mm Fisheye Lens
The CIL281 is a 1.95mm EFL M12 Fisheye lens which provides 200°@6.4mm image circle. The fast F/1.8 and ingress protection make this lens great for surveillance and robotics applications.
200° FoV: Maximize your camera's viewing angle with a 200° field of view.
Low F#: An F/1.8 lens for great performance in low light.
IP67: IP67+ rated for dust and water resistance.
| Lens Parameter | Specification |
|---|---|
| Part Number | CIL281 |
| Format Type | 1/2.3" to 2/3" |
| EFL | 2.0mm |
| F# | 1.8 Fixed |
| Resolution | 12MP+ |
| Field of View | 200° @ 6.4mm image circle Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 6.4mm |
| Distortion | -1% F-Θ |
| Weight | 9g |
| IR Cut-Off Filter | P/N With: CIL281-F1.8-M12A660 P/N Without: CIL281-F1.8-M12ANIR |
| Construction | Glass, AL6061 |
Other Products from Commonlands LLC
>10MP 25mm M12 Lens IR-Corrected
The CIL250 is a 25mm M12 Lens (S-Mount Lens) for up to 1/1.7" 8MP sensors. The lens is IR Corrected, is F/2.0, and has a compact 30mm TTL.
1/2.3 inch Low Distortion 7.2mm M12 Lens
The CIL872 is a 7.2mm F/2.5 M12 lens which provides a 58° Diagonal Field of View on 1/2.3" sensors. This lens is rated for 5MP+ and has a compact lightweight form factor.
