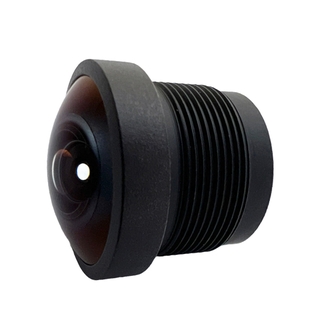

2m M12 Fisheye Lens
Model: CIL220-F2.3-M12ANIR CIL220-F2.3-M12B650 CIL220-F2.3-M12BNIR CIL220-F2.3-M12C650 CIL220-F2.8-M12B650 CIL220-F2.8-M12BNIR
The CIL220 is a small form-factor 1.8mm M12 Fisheye lens which provides a 215° Field of View at 6.8mm image
215°@6.8mm M12 Fisheye Lens
The CIL220 is a small form-factor 1.8mm M12 Fisheye lens which provides a 215° Field of View at 6.8mm image circle. The nearly 0% F-theta distortion results in consistent magnification in the 160° FoV range. Additionally, the small size, IP67-rating, and all-glass all-metal make it great for embedded vision systems.
IP67+ rated: Ideal for exterior facing applications requiring water and dust resistance
215°, FΘ and 5MP+: Minimize Fisheye Compression with 0% FΘ distortion at 200°+ FoV.
Miniature Size & IP67+: The 16.3mm TTL makes the CIL220 great for miniature camera applications.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL220 |
| Format Type | Up to 2/3" Circular Fisheye |
| EFL | 1.8 |
| F# | 2.3 or 2.8 |
| Resolution | 2MP 1/2.5" - 5MP 1/1.7" (F/2.3) 8MP+ 1/1.7" (F/2.8) |
| Field of View | 215° @ 6.8mm image circle Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 6.8mm |
| Distortion | 0% F-Θ |
| Weight | 4.0g |
| IR Cut-Off Filter | P/N With: CIL220-F2.3-M12A650 P/N Without: CIL220-F2.3-M12ANIR |
| Construction | All Glass, Aluminum |
Other Products from Commonlands LLC

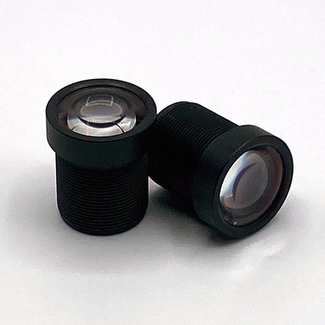

4mm Low Distortion M12 Lens
