25mm High Resolution C-Mount Lens| For up to 20MP sensors with 2.74um pixels such as the GMAX0505, TRI204S and TRI245S. Adjustable F/1.8-F/8 aperture to optimized depth of field of your system.

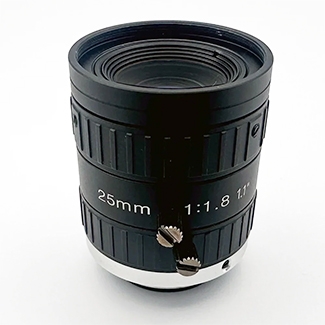

25mm C-Mount Lens 1.1" 25MP
The CIL544 is a fast 25mm 1.1" C-Mount lens for 20MP+ sensors. The manually adjustable iris from F/1.8 to F/∞ allows you optimize the depth of field of your system with the option to maximize low light.
High Resolution: Suitable for 2.5um pixel pitch for demanding applications.
Adjustable Aperture: Adjustable F/1.8-F/∞ aperture to optimized depth of field of your system.
Finite/Infinite Conjugate Optimized: Achieve crystal clear images from 130mm to infinity without field curvature.
| Lens Parameter | Specification |
|---|---|
| Part Number | CIL544 |
| Format Type | 1.1" |
| EFL | 25mm |
| F# | 1.8-C |
| Resolution | 20MP(2.74um) |
| Field of View | 28° @ 17.6mm |
| Image Circle | 17.6mm |
| Distortion | -1% from Rectilinear @ MoD |
| Weight | 87g |
| Filter | M30.5x0.5 Threaded |
| Working Distance | 0.13m~infinity |
| Construction | All Glass |
