>1/1.7" 8mm Low Distortion M12 Lens
Model: CIL078-F2.0-M12A650, CIL078-F2.0-M12ANIR, CIL078-F2.0-M12B650, CIL078-F2.0-M12BNIR
The CIL078 is a 7.8mm M12 lens which provides a 54° HFoV on 1/1.8" type sensors like the IMX334.
Low Distortion 7.8mm M12 Lens
The CIL078 is a 7.8mm M12 lens which provides a 54° HFoV on 1/1.8" type sensors like the IMX334.
Low Distortion: A high quality low distortion image is great for computer vision.
All Glass All-Metal: Good thermal stability with all-glass all-metal construction.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL078 |
| Format Type | 1/1.7" |
| EFL | 7.8mm |
| F# | 2.0 Fixed |
| Resolution | 10MP-12MP |
| Field of View | 54° @ 7.7mm image circle Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 9.3mm+ |
| Distortion | <1% TV |
| Weight | 10.4g |
| IR Cut-Off Filter | P/N With: CIL078-F2.0-M12A650 P/N Without: CIL078-F2.0-M12ANI |
| Construction | 9G+IRC with Aluminum Barrel |
Other Products from Commonlands LLC

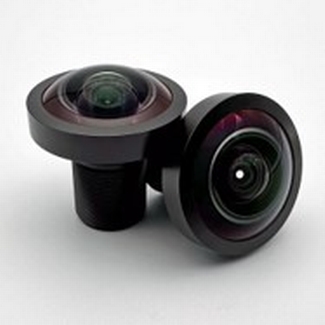

2mm Fisheye M12 Lens
The CIL219 is a 1.9mm miniature fisheye lens which provides a 200° Field of View at 6.3mm Image Circle.

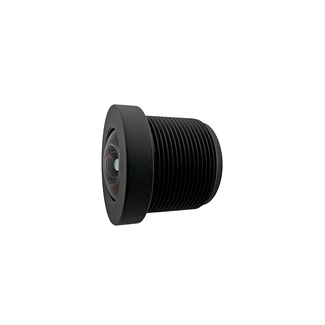

1/2.5 inch Stereographic Compact M12 Lens
The CIL825 is a 2.5mm M12 lens which provides a 115° Diagonal Field of View on 1/3" sensors. This lens has a compact lightweight form factor. A small size for lightweight or hidden applications. Create an image with limited distortion.
