1/2.5 inch 4.4mm No Distortion M12 Lens

Model: CIL043-F3.2-M12B650, CIL043-F3.2-M12BNIR, CIL043-F4.5-M12A650

Commonlands LLC

Request a Quote

The CIL043 is a 4.4mm M12 lens which provides a 73° Horizontal Field of View on 1/2.3" sensors, with no distortion. The lens is suitable for up to 8MP 1/2.5" sensors. IP67 Rated. No Distortion. Miniature Size.

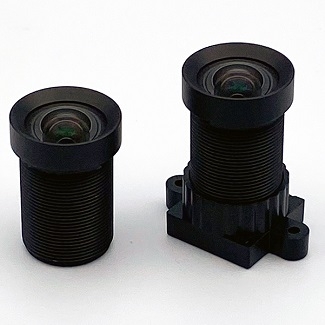

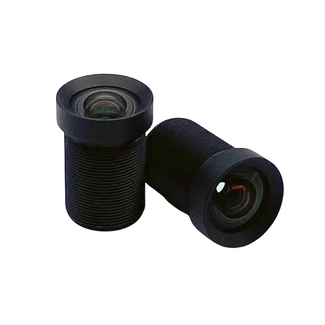

Image of 1/2.5 inch 4.4mm No Distortion M12 Lens

Lens Parameter Performance Detail

Part Number     CIL043

Format Type      1/2.3"

EFL                        4.4mm

F#                          3.2, 4.5 Fixed

Resolution          6MP+

Field of View     72° @ 6.3mm image circle

                               Calculate using our FoV Calculator

Image Circle      7.6mm~8.0mm

Distortion           -0.6% TV

Weight                7.8g

Construction     Hybrid Glass/Plastic with Aluminum Barrel

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.

Other Products from Commonlands LLC

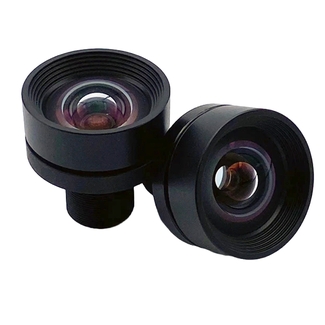

>1/1.7 inch 8.0mm Large Format M12 Lens Image

>1/1.7 inch 8.0mm Large Format M12 Lens

The CIL081 is an 8.0mm M12 lens for >1/1.7" Cameras. Suitable for >1/1.7" Type cameras, with a large 10mm+ image circle.

Continue

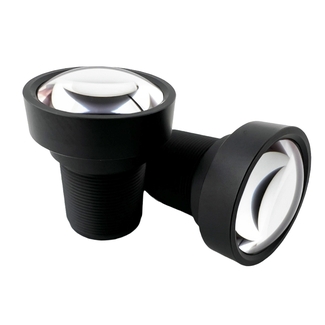

3.8mm Low Distortion M12 Lens Image
