1/2 inch 3mm M12 Lens 4K+ Wide-Angle No-Distortion

Model: CIL028-F2.3-M12A650, CIL028-F2.3-M12ANIR, CIL028-F2.6-M12A650, CIL028-F2.6-M12ANIR

Commonlands LLC

Request a Quote

The CIL028 is a wide-angle no-distortion 2.6mm M12 lens suitable for up to 5-6MP 1/2" sensors. The lens provides 100° HFoV on 1/2.3" sensors and is great for video-conferencing systems.

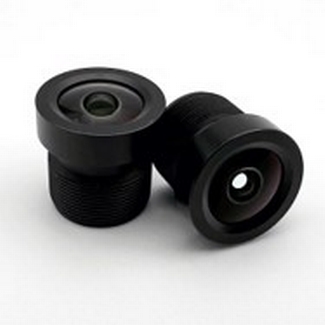

Image of 1/2 inch 3mm M12 Lens 4K+ Wide-Angle No-Distortion

Lens Parameter Performance Detail

Part Number     CIL028

Format Type      1/2"

EFL                        2.6mm

F#                         2.3 or 2.6

Resolution          3-5MP, 2.2μm (F/2.3)
                               6MP, 2.1μm (F/2.6)

Field of View     100° @ 6.2mm image circle

                               Calculate using our FoV Calculator

Image Circle      7.2mm as designed, 8.4mm maximum

Distortion           -3%

Weight                6.8g

Construction     Hybrid Glass/Plastic with Aluminum Barrel

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.

Other Products from Commonlands LLC

> 5MP 25mm C-Mount Lens Fast Adjustable Aperture Image

> 5MP 25mm C-Mount Lens Fast Adjustable Aperture

The CIL525-F1.4-CMANIR is a fast 25 mm C-Mount lens for up to 5MP 2/3" sensors with 3.45um pixel pitch.

Continue

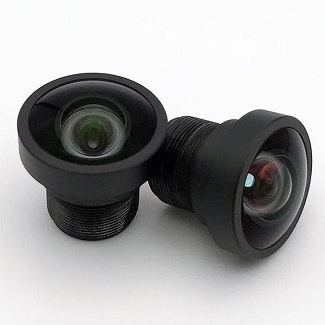

4mm Low Distortion M12 Lens Image
