>1/1.8 inch No Distortion 3mm M12 Lens

Model: CIL034-F2.3-M12A660, CIL034-F2.3-M12ANIR, CIL034-F2.3-M12B660, CIL034-F2.3-M12BNIR, CIL034-F2.7-M12A660, CIL034-F2.7-M12ANIR, CIL034-F2.7-M12B660, CIL034-F2.7-M12BNIR, CIL034-F4.2-M12B660, CIL034-F4.2-M12BNIR

Commonlands LLC

Request a Quote

The CIL034 is a wide-angle no-distortion 3.2mm M12 lens suitable for 12MP+ and up to 1/1.8" sensors. This IP67+ sealed lens provides 87° HFoV on 1/2.3" sensors and is great for exterior facing applications.

Image of >1/1.8 inch No Distortion 3mm M12 Lens

Lens Parameter Performance Detail

Part Number     CIL034

Format Type      1/1.8"

EFL                        3.2mm

F#                          2.3, 2.7, or 4.2 Fixed

Resolution          F/2.3: 3-5MP
                               F/2.7: 12MP
                               F/4.2: 6MP

Field of View     84° @ 6.2mm image circle

                               Calculate using our FoV Calculator

Image Circle      8.1mm+

Distortion           <0.1% Rectilinear

Weight                5.7g

Construction     Hybrid Glass/Plastic, with AL6061 Barrel

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.

Other Products from Commonlands LLC

1/2 inch Low Distortion 7mm M12 Lens Image

1/2 inch Low Distortion 7mm M12 Lens

The CIL068 is a 7mm M12 lens which provides a 50° HFoV on 1/2" type sensors like the IMX477. This board lens can be used on up to 1/2" sensors and has <1% TV Distortion. High-quality low distortion image.

Continue

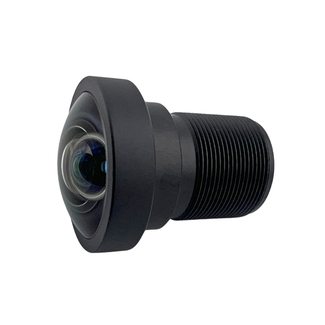

1/2.5 inch Low Distortion Wide-Angle 2mm M12 Lens Image
