1/1.7 inch 3.5mm Miniature Wide-Angle M12 Lens

Model: CIL344A-F1.8-M12A660, CIL344A-F1.8-M12ANIR, CIL344B-F2.7-M12A655, CIL344B-F2.7-M12ANIR

Commonlands LLC

Request a Quote

The CIL334 is a 5MP+ wide-angle 3.5mm M12 lens which provides a 140° Horizontal Field of View on 1/1.8" 16:9 sensors.

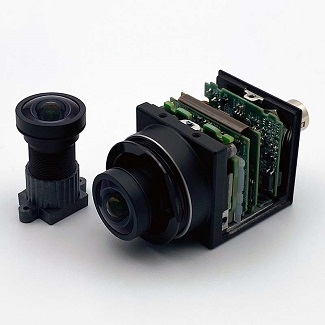

Image of 1/1.7 inch 3.5mm Miniature Wide-Angle M12 Lens

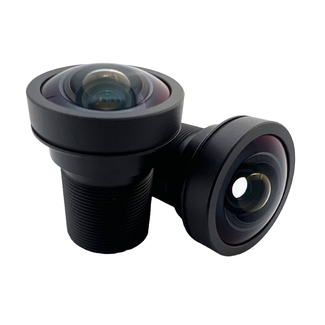

Large Format 3.5mm M12 Lens

The CIL334 is a 5MP+ wide-angle 3.5mm M12 lens which provides a 140° Horizontal Field of View on 1/1.8" 16:9 sensors.

$29.00

Large Format: Achieve a Wide Angle Field of View on up to 1/1.7" type sensors.

Small Form Factor: A short 19.6mm total track length and weight of 4.3g is ideal for aerial robotics.

IP67 and Hydrophobic: Variant "C" is IP67 rated with hydrophobic coating on L1S1.

Lens Parameter Performance Detail

Part Number     CIL344

Format Type      1/1.7"

EFL                        4.4mm

F#                          1.9 and 2.7 variants available

Resolution          F/1.9: 3-5MP

                               F/2.7: 14MP+

Field of View     100° @ 7.7mm

                               Calculate using our FoV Calculator

Image Circle      9.4mm

Distortion           0% F-Θ

Weight                8.0g

Construction     All Glass, Aluminum

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.

Other Products from Commonlands LLC

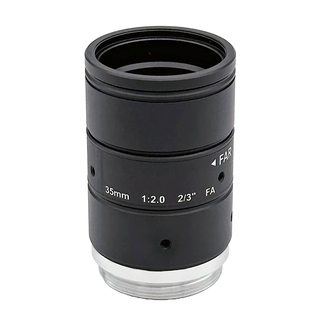

2/3 inch 12MP 35mm C-Mount Lens Image
