CIS Corporation is a development-oriented manufacturer of cameras for use in various applications. The advanced CIS camera line includes high-performance cameras with CIS original ISP, state-of-the-art “Clairvu engine™” for superb imaging quality and high speed processing. We provide FPGA IP or software license as well as compact size, high-resolution, high-speed cameras. The product design philosophy of CIS is driven by industry requirements and offers products with the most advanced technology.
Product filed under:
Camera Link and Cameras & Smart Cameras Camera Link and Cameras & Smart Cameras

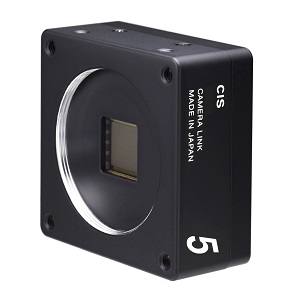

5M pixel, high speed Camera Link interfaced camera utilizing CMOS image sensor.
Model: VCC-5CL4M/VCC-5CL4R
5M resolution, Max. 114fps high speed, 55x55x25 small footprint Camera Link camera. Packed with versatile functions perfectly suitable for semiconductor inspection, panel inspection, parts inspection, medical inspection, measurement, appearance inspection, etc. For those who may prefer the faster type of camera, CIS offers VCC-5CL4MHS (monochrome, high speed) and VCC-5CL4RHS (color, high speed), too. For further information for high speed model, please visit our website or contact our sales division. VCC-5CL4M(Monochrome)/VCC-5CL4R(Color) Device type: Sony Pregius 2/3 type, Global shutter type CMOS sensor Effective pixel number: 2448(H) x 2048(V) Unit cell size: 3.45 x 3.45µm Frame rate: 28fps(2tap), 42fps(3tap), 57fps(4tap), 114fps(8tap), 114fps(10tap8bit (High speed model only)) Shutter speed: OFF~1/55,000s Gain: 0~36dB Interface: Camera Link (PoCL/non-PoCL is selectable) Dimensions/Weight: W55x H55 x D25 mm/Approx. 100g Lens Mount: M42-mount Versatile Functions Ex.)fixed trigger shutter mode, pulse width trigger shutter mode, defective pixel correction, ROI, white balance etc. Usage of this product Board inspection, panel inspection, parts inspection, medical inspection, measurement, appearance inspection, etc.
