CIS Corporation is a development-oriented manufacturer of cameras for use in various applications. The advanced CIS camera line includes high-performance cameras with CIS original ISP, state-of-the-art “Clairvu engine™” for superb imaging quality and high speed processing. We provide FPGA IP or software license as well as compact size, high-resolution, high-speed cameras. The product design philosophy of CIS is driven by industry requirements and offers products with the most advanced technology.
Product filed under:
Cameras & Smart Cameras and CoaXPress Cameras & Smart Cameras and CoaXPress
127M ultra high resolution camera with CoaXPress interface.
Model: VCC-127CXP6M/VCC-120CXP6R
.jpg)

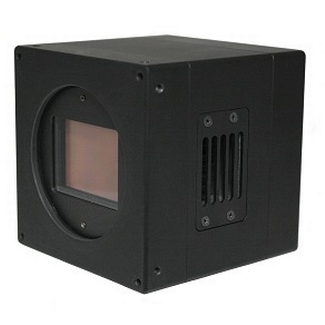

127M Ultra high resolution, 100x100x100mm footprint CoaXPress camera.
VCC-127CXP6M/VCC-127CXP6R
- CoaXPress I/F
- Sensor size: 3.6 type CMOS
- Unit cell size: 3.45µm×3.45µm
- Effective number of pixels: 13408x9528
- Frame rate: 18.5fps (CXP12?8bit×2lanes), 13.1fps (CXP12?10bit×2lanes), 11.1fps(CXP12?12bit×2lanes), 9.2fps(CXP12?8bit×1lanes)
- Resolution: 127M
- Pixel clock: 74.25MHz
- Shutter speed: 22µs-15s
- Lens mount: M72 mount
Further more, there are other functions perfectly suitable for liquid crystal inspection and semiconductor wafer inspection are installed. Such as, high speed processing, external trigger, ROI, 2×2 binning, defective pixels correction, shading correction, FFC (Flat Field Correction), PoCXP, etc.
Usage of this product
FPD inspection/Wafer inspection etc.
