Cincoze Co., Ltd. Product
Member Since 2021
Cincoze is a professional manufacturer of embedded computers. We design, manufacture, and sell fanless embedded computers, industrial panel PCs and monitors, and rugged industrial GPU embedded systems for demanding industrial applications and harsh environments.
Product filed under:
Embedded Vision Processors / Compact Vision Systems Embedded Vision Processors / Compact Vision Systems

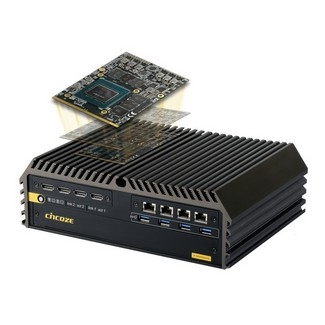

9th/8th Gen Intel Xeon/Core Embedded GPU Computer, Supports 1x MXM 3.1 GPU Expansion Socket | GM-1000
Model: GM-1000
The Cincoze GM-1000 is a machine vision computer designed for machine vision applications, but with enough extra for artificial intelligence and image processing. All this in a tough, compact, and reliable package.
34% Faster Core Performance
Intel® Xeon® and Core™ (8/9th gen) CPU options with up to 8 cores, deliver 34% more performance than previous generations and support up to 64 GB of DDR4 memory.
MXM GPU Expansion
GPUs are the key to super-fast image processing. The MXM 3.1 Type A/B expansion slot supports modern MXM GPUs. Standard options are an Nvidia Quadro RTX3000/T1000/P2000 or AMD Radeon E9174 GPU, but upgrades to even faster MXM GPUs (up to 160 W) can further accelerate performance.
Generous 360W Power Budget Core Performance
The specialized power design of the GM-1000 provides a 360W power budget that counters the typical limitations of fanless embedded systems. A unique thermal design, combining independent cooling systems for CPU and GPU and extruded aluminum case with integrated copper heat piping, ensure operational reliability in the field.
High Speed I/O
High-speed vision cameras require high-speed connections for near-instantaneous data transfer for image processing and analysis. GM-1000 provides high-speed I/O interfaces, including USB3.2 Gen2 and GbE LAN. PoE, additional LAN, and 10GbE are available through proprietary modules.
Compact Size
The compact GM-1000 is a diminutive 260x200x85 mm (WxLxH) but still includes essential I/O out-the-box, making it a compelling choice for space-constrained applications like robotic arms and AOI equipment.
Industrial Grade Rugged Design
The GM-1000 can operate in extreme industrial temperatures from -40 to 70°C. It has 50G/5G anti-shock and vibration resistance, wide-range voltage input from 9 to 48 VDC, as well as over-voltage, over-current, and ESD protection for applications in the harshest conditions.
For more information on GM-1000, please visit: https://www.cincoze.com/events/RuggedGPUComputer-GM-1000/
For related embedded MXM GPU modules, please check: https://www.cincoze.com/goods_catalog.php?cid=69
Download Cincoze's product catalog here: https://www.cincoze.com/bulletin_info.php?id=138
