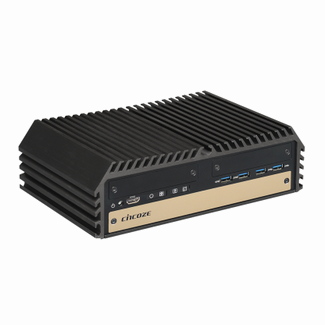

9/8th Generation Intel Xeon and Core Processors, Extreme Performance, Compact and Modular Rugged Workstation | DX-1100
Model: DX-1100
The Cincoze DX-1100 is a rugged workstation specifically designed to satisfy demands for the high-performance computing platform. Based on LGA 1151 socket and Intel® C246 chipset, the system supports 9/8th generation Intel Xeon® and Core™ processors (formerly codenamed Coffee Lake S) with up to 8 cores and 64GB memory capacity.
Despite its remarkably compact size, the DX-1100 still delivers the maximum flexibility of modular I/O expansions and provides dual hot-swap 2.5" HDD/SSD tray with RAID function. Thanks to Cincoze’ exclusive CFM (Control Function Module) technologies, the DX-1100 can be configured instantly with Power over Ethernet and power ignition sensing functions to be applied in many industrial applications, such as machine vision, in-vehicle transportation, and mobile surveillance.
Featuring rugged construction, fanless/cable-less/jumper-less design, wide operating temperature (-40 to +70°C), wide range DC power input (9~48 VDC), high tolerance to vibration and shock (5/50 Grms), the DX-1100 is maintenance-free and ideal to be deployed in harsh environments.
Compact with extreme performance
DX series is a compact embedded computer (242 x 173 x 77 mm) with the extreme performance of an Intel® Xeon® or Intel® Core™ CPU and support for up to 64 GB of DDR4 memory.
Highly modular expansion
In addition to the native I/O interfaces, Cincoze's exclusive CMI and CFM technology expands native options to include Power over Serial, DIO, LAN, PoE, M12, and more.
Application ready solution
Harnessing Cincoze's exclusive CFM technologies, the DX series can be configured instantly with Power-over-Ethernet and Power Ignition Sensing (IGN) Functions necessary for many industrial applications, such as intelligent machines, in-vehicle, transportation, and security & surveillance.
Industry certifications
DX series is certified with E-Mark and EN50121-3-2 for in-vehicle and railway use and other mission-critical applications.
For more information on DX-1100, please visit: https://www.cincoze.com/goods_info.php?id=286
For different models of DX series (with other CPU SKUs or expansion functions), please check: https://www.cincoze.com/goods.php?cid=28
Download Cincoze's product catalog here: https://www.cincoze.com/bulletin_info.php?id=138
