CANEO series4X (IO-link capable)
Model: Series41 Standard, Series41 Solid, Series40 Puck, Series43 Hygienic
Combining the option to easily configure settings, along with the hardware advantages of status, signal, and 7-segment display all-in-one switch
CANEO Series 4X
THE FLEXIBLE HUMAN MACHINE INTERFACE (HMI) FOR INDUSTRY 4.0
All-In-One Switch
Combining the option to easily configure settings, along with the hardware advantages of status, signal, and 7-segment display all-in-one switch; CANEO series4X can easily integrate into HMI applications and modern system controls.
STANDARD FEATURES
- Activation type (toggle, dynamic, static)
- Activation time (max,min)
- Implement discretely or with IO-Link
- Colors and LED programming (flashing, pulsing, static)
- Output mode (PNP-NO, PNP-NC, NPN-NO, NPN-NC)
- Assign one of 16 million luminous colors to individual users
STANDARD FEATURES
- Durable hardware designed for over 100MM actuations
- Capacitive technology means zero actuation force required
- Large touch surface simplifies operation
- Scrolling texts and timers can be mappedeven without a PLC
- Easy installation
EASY INSTALLATION
Screw mounting, housing for 22.5mm mounting with knurled nut, or adhesive mounting depending on product.
Other Products from Captron North America LP

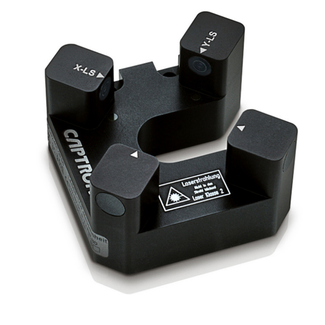

TCP Laser Calibration Castle Sensor 40mm
