TCP Laser Calibration Castle Sensor 70mm with Daisy Chain Output Connector

Captron North America LP Product

Member Since 2024

Our customers have been placing their trust in the quality and reliability of our products since 1983. From simple buttons to sophisticated systems, our products make people's everyday lives easier.

Product filed under:

Collaborative, Sensors, and Tool Changers Collaborative, Sensors, and Tool Changers

Request a Quote

TCP Laser Calibration Castle Sensor 70mm with Daisy Chain Output Connector

Model: OGLW2-70T5-2PS6

Captron North America LP

Request a Quote

CAPTRON's TCP Laser Calibration Castle Sensor 70mm with Daisy Chain Output Connector is the perfect solution

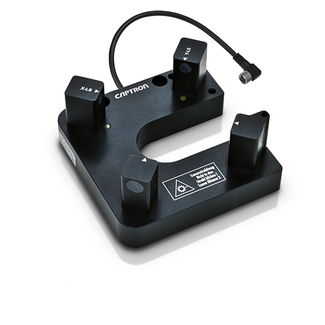

Image of TCP Laser Calibration Castle Sensor 70mm with Daisy Chain Output Connector

Features

• 70mm TCP open design with daisy chain output connector

• Aluminum, black anodized measurement unit

• Automatically check, validate or correct the tool tip (measurement of X-, Y-, Z-axis & angles)

• Reliably detect both metallic and non-metallic objects

• Ensures maximum precision for tool calibration with a reproducibility of 0.01 mm

• IP65 - "dust tight" and protected against water projected from a nozzle

• Fitting holes for exact positioning

• Easy assembly with ability to connect to additional sensors

• Quick and easy integration for Universal Robots with the URCap

Experience the automatic calibration of a UR robot with our TCPs! In this video, we show you how easy it is to calibrate a UR robot using our innovative “URCap” software and our Tool Center Points (TCPs). See step by step how the calibration is performed and learn how our solution improves the precision and efficiency of your robot applications. As a UR+ partner, we take our TCP measurement technology to a new level of integration with UR robots.

Other Products from Captron North America LP

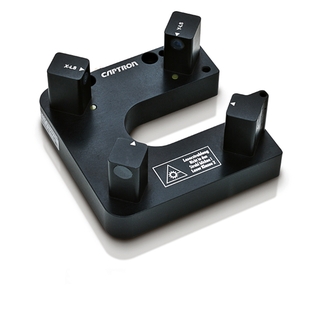

TCP Laser Calibration Castle Sensor 70mm
