APT Manufacturing Solutions Product
Member Since 2014
APT Manufacturing Solutions specializes in Robotic Packaging Systems, Robotic Welding Systems, and Industrial Education Solutions. Contact us at [email protected].
Product filed under:
Robots Robots

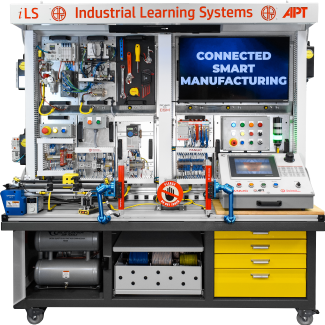

Integrated with Rockwell controls, the iLS uses modules to teach an unlimited amount of industrial courses.
Start with a BASE and add MODULES for almost any industrial training.
- Add up to 12 modules to each base
- Accommodates multiple applications and/or multiple students
- Each board location has 24VDC and compressed air supply
- Each module includes a project print
- Integrate to any FANUC robot using a PLC-to-ethernet IP; either with an ethernet cord or 2 of the wireless module options, one for the robot and one for the PLC
- Purchase a blank panel and create your own board
- Fits through standard doorway
| Pathway | Category | Module | Description |
|---|---|---|---|
| Controls | Electrical | AB Relay Start/Stop | The AB Relay Start/Stop module teaches relay logic with start/stop circuit board. |
| Motion Control | AB PowerFlex 525 | The AB PowerFlex 525 module will allow labwork with variable frequency drive and motor control. | |
| Safety | AB E-stop Safety Circuit (hard-wired) | AB E-stop Safety Circuit (hard-wired) - can be paired with other modules to learn the integration of an E-stop circuit. | |
| PLC & IO | Compact GuardLogix PLC | This board teaches beginning, intermediate, and advanced PLC programming and troubleshooting. | |
| Switches, Buttons, Lights | Operator Interface | The operator interface can be wired into the PLC and programmed for various input and output devices. | |
| PBL (Project-Based Learning) Kits | AC Motor Kit | This AC Motor Kit is a bench-mounted motor that works with VFD and relay board. This is a base kit for additional labs and exercises. | |
| Miscellaneous | 32” Display | This display allows connection of laptop or desktop computer for easy viewing of LMS, curriculum, or videos. | |
| iCC (Industrial Controls Center) | The iCC Trainer can be integrated to allow additional functionality of PLC, step sequence logic, and additional i/o. | ||
| Industrial | Industrial | 5S Drawer Tools | This allows students to learn the importance of organization when storing tools and equipment. |
| Mounting Solutions | Swivellink® | Swivellink allows for easy manipulation of sensors, lights, & cameras on any of the modules. | |
| PBL (Project-Based Learning) Kits | Swivellink® Conveyor | The conveyor teaches part movement, sequencing, and motor control. | |
| Fluid Power | Fluid Power | SMC Manifold | This module allows students to learn pneumatic control in conjunction with projects and labs. |
| Robotics | PBL (Project-Based Learning) Kits | Pneumatic Pick & Place | The FANUC robot project guides students through pick and place of parts in conjunction with fluid power, conveyor, PLC, safety, and other modules. |
