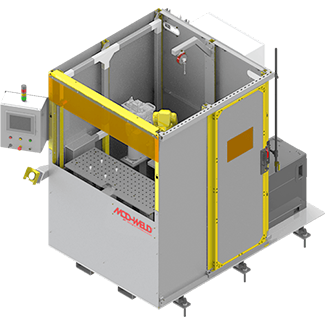

MOD-WELD ARC MATE Series - Single Station Fixed Table
Model: SSFWT-48-AM50, SSFWT-72-AM100, SSFWT-96-AM120
The fixed table allows the operator to load the parts directly into their fixture as the robot waits in a
- FANUC Robot / Rockwell Controls / Integrated by APT Manufacturing
- Load/Unload directly into the weld cell
- Locating holes for Fixtures to be removed and set back up in same location
- Ease of set up
- Easy maintenance and cleanliness
- Side access door for entering in a safe environment
- Small footprint
- Recipe Management with room for up to 100 recipes
- Base model is configured to weld steel (hard metal), soft metals require additional options
- Power Source Choice of:
-
- Miller Auto-Continuum with torch and wire feed
- Fronius TPS/i with torch and wire feed
| System Model | SSFWT-48-AM50 | SSFWT-72-AM100 | SSFWT-96-AM120 |
| 6-Axis Robot | FANUC ARC Mate 50iD | FANUC ARC Mate 100iD | FANUC ARC Mate 120iD |
| Robot Reach | 36” | 57” | 72” |
| Robot Power | 480VAC 3PH 60AMP | ||
| Robot Programming | Teach Pendent Only | ||
| Torch Roller Dress-out | MOD-WELD Custom | ||
| Available I/O | 8 in 8 out | ||
| Available Valve Bank Space | (4) closed center / (4) Blanks | ||
| Operator Interface / Recipe Management | Rockwell PLC/HMI Interface | ||
| Cell Footprint | 60" x 90" | 84" x 102" | 108" x 114" |
| Table Work Space | 24" x 48" | 36" x 72" | 48" x 96" |
| Table Hole size | 16mm Dia 2" x 2" Hole Pattern | ||
