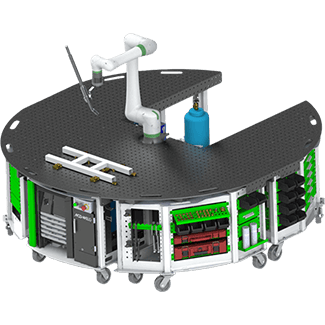

MOD-WELD MAC Series Cobot Table Cart
Model: COBOT-10iA/L
The MOD-WELD is designed and manufactured around the FANUC CRX-10iA/L industrial collaborative robot. The CRX models come from a long
- Mobile Cart welded construction powder coat finish
- FANUC CRx Collaborative Robot with APT Clever Torch teach button software package ready to teach and weld
- Lockable teach tablet holder
- APT Clever Torch for ease of movement and teaching the robot.
- Top plate 40” x 58-1/2” with 16mm 2” center holes for clamping and fixture hold down
- 6” Casters for ease of movement
- Ready to accept side cart and accessories
- Base model is configured to weld steel (hard metal), soft metals require additional options
- Power Source Choice of:
- Miller Auto-Continuum with torch and wire feed
- Fronius TPS/i with torch and wire feed
For more information on the MOD-WELD MAC series Cart, visit our website: https://aptmfg.com/products/mod-weld-cobot-modular-table-cart/
| System Model | COBOT 10iA/L |
| 6-Axis Robot | FANUC CRX-10iA/L |
| Robot Reach | 55" |
| Robot Power | 120v 20 amp |
| Robot Programming | Tablet only |
| Robot Torch Guidance | Clever Torch Teach Guidance |
| Torch Roller Dress-out | MOD-WELD Custom |
| Cart Footprint | 40”W x 78” D |
| Cart Table Work Space | 40”W x 58-1/2” D |
| Cart Table Hole size | 16mm Dia, 2" x 2" Hole Pattern |
| Approx Weight w/ Welder | 1300 lbs |
