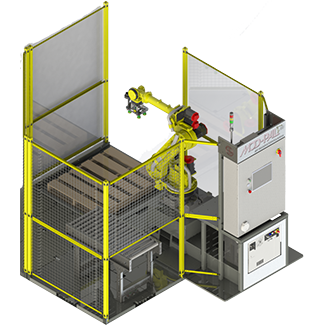

APT MOD-PAL® Modular Palletizer - 1 in 1 out with floor discharge
Model: MOD-PAL® 80 / MOD-PAL® 140
APT Modular Palletizing Standard System using a FANUC R1000iA/80H or M410iB/140H Robot with 1 infeed line
This is the APT Modular Palletizing Standard System using a FANUC R1000iA/80H or M140iB/140H 5-axis robot. There is 1 infeed line and 1 single pallet exit.
This configuration is built using the following MOD-PAL® modules:
1 Robot Base Unit
1 Pallet Floor Corral
1 Single Infeed
1 45° Platform with Door
1 Lot Fencing and Safety
Payload: MOD-PAL® 80 - up to 80 lbs. MOD-PAL® 140 - up to 110 lbs.
Max unit load height (including pallet): MOD-PAL® 80 - 78” MOD-PAL® 140 - 94”
Case rate (picks/minute): 12 ppm
Compact footprint
User-defined pallet pattern
Pre-engineered cell configurations
Standard patterns: Interlock or Column
Standard layers: Flipped or Non-flipped
Case sizes: 7” x 5” x 5” to 24” x 17” x 16”
Slip sheet magazine option
EOAT: Vacuum Adjustable
1 Powered roller infeed conveyor
Pallet jack accessible
Forklift accessible
Contact APT Manufacturing Solutions at aptmfg.com or 419-542-6681
Other Products from APT Manufacturing Solutions
APT MOD-PAL® Modular Palletizer - 1 in 1 out Pass-through conveyor
APT Modular Palletizing Standard System using a FANUC R1000iA/80H or M410iB/140H robot with pass-through conveyor

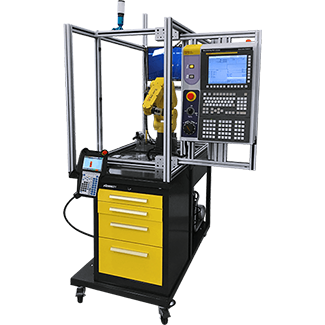

MTEC-SIM - Robot with CNC Simulator Training Cell
