ADVANCED Motion Controls® (AMC) designs, manufactures and supplies the highest performance servo drives and servo amplifiers available. From complete PWM servo control to custom servo solutions, AMC provides brushed and brushless motor drives with the latest in digital servo technology and analog servo expertise. AC servo and DC servo motor controllers are available for general servo automation or specific robot control. Our newest DigiFlex® Performance™ digital motion control servos includes positioning drive features as a more complete servo motor drive for AC and DC brushless servo motors, DC brush type servo motor, linear and rotary servo motors, closed loop vector motors, voice coils, inductive loads and actuators for precise motion control. Network connections for either centralized or distributed servo systems include: EtherCAT, Ethernet PowerLink, CANopen, RS232, RS485, Ethernet UDP/IP, Modbus TCP, and many other custom interfaces.
Product filed under:
DC Servo Drives, Motor Controls, and Motors & Drives DC Servo Drives, Motor Controls, and Motors & Drives

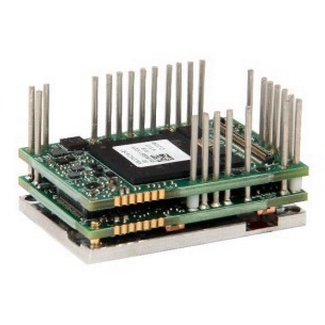

The FXE060-25-RM is a FlexPro® series Extended Environment servo drive with IMPACT™ architecture
The FXE060-25-RM is a FlexPro® series Extended Environment servo drive with IMPACT™ architecture. The FXE060-25-RM offers full tuning control of all servo loops and is designed to drive brushed and brushless servo motors, stepper motors, and AC induction motors. The drive accepts a variety of external command signals, or can use the built-in Motion Engine, an internal motion controller used with Sequencing and Indexing commands. Programmable digital and analog I/O are included to enhance interfacing with external controllers and devices. The FXE060-25-RM features an RS485/232 interface for network communication and USB connectivity for drive configuration and setup. All drive and motor parameters are stored in non-volatile memory. IMPACT™ (Integrated Motion Platform And Control Technology combines exceptional processing capability and high-current components to create powerful, compact, feature-loaded servo solutions. IMPACT™ is used in all FlexPro® drives and is available in custom products as well.
The FXE060-25-RM conforms to the following specifications and is designed to the Environmental Engineering Considerations as defined in MIL-STD-810F.
Ambient Operating Temperature Range: -40°C to +95°C (-40°F to +203°F)
Thermal Shock: -40°C to +95°C (-40°F to +203°F) within 3 min.
Relative Humidity: 0 to 95%, Non-Condensing
Vibration: 25 Grms for 5 min. in 3 axes
Altitude: -400m to +25000m
Contaminants: Pollution Degree 2
The FXE060-25-RM is ideal for applications in the Automated Guided Vehicle (AGV) industry.
See the product detail page for the FXE060-25-RM on the Advanced Motion Controls website.
Features
 |
Command Sources
|
Motors Supported
|
|
Operating Modes
|
Inputs/Outputs
|
Feedback Supported
|
Other Products from ADVANCED Motion Controls
FXE060-25-EM
The FXE060-25-EM offers full tuning control of all servo loops and is designed to drive brushed and brushless servo motors, and closed loop stepper motors.
DigiFlex Performance Digital Servo Drives
DigiFlex® Performance™ are ADVANCED Motion Controls' largest selection of digital servo drives with a wide range of power levels available in PCB mount, panel mount, and vehicle mount form factors.
