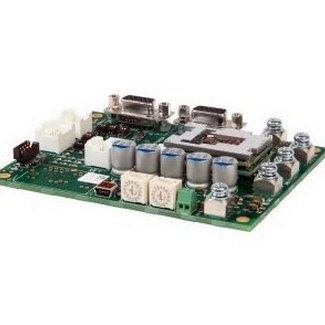

FD060-5-CM

The FD060-5-CM is a servo drive and development board assembly for a FE060-5-CM FlexPro® series servo drive with IMPACT™ architecture. Connections to the controller, motor, power, and feedback are simplified through the standard connectors featured on the board. The FD060-5-CM is ideal for prototyping and can be used in production and industrial environments as well. The FD060-5-CM offers full tuning control of all servo loops and is designed to drive brushed and brushless servo motors, stepper motors, and AC induction motors. The drive assembly accepts a variety of external command signals, or can use the built-in Motion Engine, an internal motion controller used with Sequencing and Indexing commands. Programmable digital and analog I/O are included to enhance interfacing with external controllers and devices. The FD060-5-CM utilizes CANopen network communication and is configured via USB. All drive and motor parameters are stored in non-volatile memory.

The FD060-5-CM is ideal for applications in the Automated Guided Vehicle (AGV) industry.

See the product detail page for the FD060-5-CM servo drive and development board on the Advanced Motion Controls website.

Features

	Command Sources Over the Network ±10V Analog Sequencing Indexing Jogging Step & Direction Encoder Following	Motors Supported Three Phase Single Phase Stepper AC Induction
Modes of Operation Profile Modes Cyclic Synchrnous Modes Current Velocity Position Interploated Position Mode (PVT)	Inputs/Ouputs 4 Programmable Digital Inputs 3 Programmable Digital Ouputs 1 Programmable Analog Input	Feedback Supported Absoulte Encoder BiSS C-Mode EnDat 2.2 Incremental Encoder Hall Sensors Aux Incremental Encoder Tachometer (±10V)
