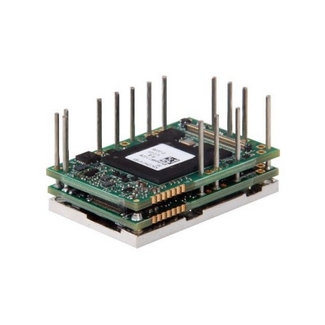

FXE060-10-CM

The FXE060-10-CM is a FlexPro® series Extended Environment servo drive with IMPACT™ architecture. The FXE060-10-CM offers full tuning control of all servo loops and is designed to drive brushed and brushless servo motors, stepper motors, and AC induction motors. The drive accepts a variety of external command signals, or can use the built-in Motion Engine, an internal motion controller used with Sequencing and Indexing commands. Programmable digital and analog I/O are included to enhance interfacing with external controllers and devices. The FXE060-10-CM features a CANopen interface for network communication and USB connectivity for drive configuration and setup. All drive and motor parameters are stored in non-volatile memory. IMPACT™ (Integrated Motion Platform And Control Technology) combines exceptional processing capability and high-current components to create powerful, compact, feature-loaded servo solutions. IMPACT™ is used in all FlexPro® drives and is available in custom products as well. The FXE060-10-CM conforms to the following specifications and is designed to the Environmental Engineering Considerations as defined in MIL-STD-810F.

Ambient Operating Temperature Range:  -40°C to +95°C (-40°F to +203°F)

Thermal Shock:  -40°C to +95°C (-40°F to +203°F) within 3 min.

Relative Humidity:  0 to 95%, Non-Condensing

Vibration: 25 Grms for 5 min. in 3 axes

Altitude: -400m to +25000m

Contaminants: Pollution Degree 2

The FXE060-10-CM is ideal for applications in the  Military/Defense industry.

See the product detail page for the FXE060-10-CM on the Advanced Motion Controls website.

Features

	Command Sources Over the Network ±10V Analog Sequencing Indexing Jogging Step & Direction Encoder Following	Motors Supported       Three Phase Single Phase Stepper AC Induction
Operating Modes Profile Modes Cyclic Synchrnous Modes Current Velocity Position Interploated Position Mode (PVT)	Inputs/Outputs 4 Programmable Digital Inputs 3 Programmable Digital Ouputs 1 Programmable Analog Input	Feedback Supported Absolute Encoder BiSS C-Mode EnDat 2.2 Tamagawa/Nikon Incremental Encoder Hall Sensors Aux Incremental Encoder Tachometer (±10V)
