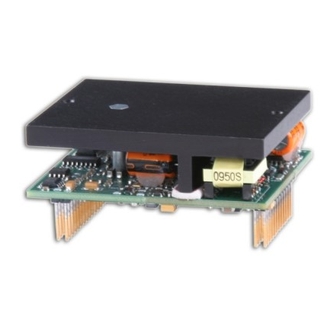

DZXCANTE-008L080

The DZXCANTE-008L080 digital servo drive is designed to drive brushed and brushless servomotors, stepper motors, and AC induction motors from a compact form factor ideal for embedded applications. This fully digital drive operates in torque, velocity, or position mode and employs Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM. The drive can be configured for a variety of external command signals. Commands can also be configured using the drive’s built-in Motion Engine, an internal motion controller used with distributed motion applications. In addition to motor control, this drive features dedicated and programmable digital and analog inputs and outputs to enhance interfacing with external controllers and devices.

The DZXCANTE-008L080 features a single RS232 interface used for drive configuration and setup. The CANopen interface can be used for online operation in networked applications. Drive commissioning is accomplished using DriveWare® 7, available for download at www.a-m-c.com.

The DZXCANTE-008L080 conforms to the following specifications and is designed to the Environmental Engineering Considerations as defined in MIL-STD-810F.

Ambient Temperature: -40°C to +75°C (-40°F to +167°F)

Storage Temperature: -50°C to +100°C (-58°F to +212°F)

Thermal Shock: -40°C to +75°C (-40°F to +167°F) in 2 min.

Relative Humidity: 0 to 95% Non-Condensing

Vibration: 30 Grms for 5 min. in 3 axes

The DZXCANTE-008L080 is ideal for applications in the Military/Defense industry.

See the product detail page for the DZXCANTE-008L080 on the Advanced Motion Controls website.

Features

	Command Sources ±10 V Analog PWM and Direction Encoder Following Over the Network Sequencing Indexing Jogging	Feedback Supported ±10 VDC Position Halls Incremental Encoder Auxillary Incremental Encoder Tachometer (±10 VDC)
Modes of Operation Profile Modes Cyclis Synchrnous Modes Current Velocity Position Interploated Position Mode (PVT)	Inputs/Outputs 3 High Speed Captures 1 Programmable Analog Input (12-bit Resolution) 2 Programmable Digital Inputs (Differential) 3 Programmable Digital Inputs (Single-Ended) 3 Programmable Digital Outputs (Single-Ended)
