ADVANCED Motion Controls Product
The AxCent™ product platform encompasses the non-digital architecture servo drives from ADVANCED Motion Controls® including: panel mount, pcb mount and vehicle mount servo drives.

The quick response and high bandwidth of AxCent™ servo drives are targeted for centralized control schemes, hence Axes for Centralized Control. The AxCent product platform brings improvements to the design architecture that utilizes our years of experience in the industry and the latest advancements in modern servo system design.
AxCent™ servo drives operate with three-phase brushless permanent magnet motors as well as single-phase brushed motors and inductive loads.
Benefits:
- Application flexibility
- More modes of operation in each unit
- Built-in brushed and brushless compatibility
- Expanded DIP-Switch tuning
- Solderless solution to achieve optimal performance
- Available for both current loop and velocity loop tuning
- Quick response and high bandwidth
- Encoder Velocity, Duty Cycle Feedback, and Current Modes on the same model
- Custom modifications are readily available to supplement the standard offering.
Advanced Tuning
AxCent™ servo drives feature expanded DIP Switch tuning capabilities for current loop and velocity loop tuning. This solderless solution allows greater flexibility and optimization of system behavior.
The current loop integrator features switch settings for 16 distinct values, while the current loop proportional gain features 32 values. Together the current loop integrator and proportional gains can be adjusted to perfectly match the motor’s electrical characteristics to ensure the maximum power transfer from the drive to the motor for increased performance and efficiency. An unstable current loop creates excess heat in the motor, while a properly tuned current loop increases efficiency and is the foundation for a highly responsive system.
The velocity loop integrator features 16 distinct tuning values and works together with a proportional gain potentiometer to achieve the performance and stability desired for each machine’s unique inertia and resonance characteristics.
Other Products from ADVANCED Motion Controls

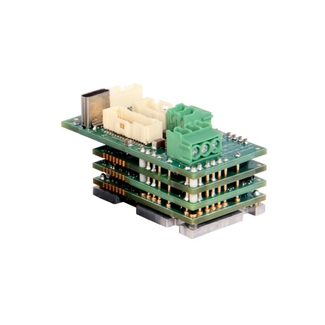

FXM060-25-EM
