Goniometers with Common Pivot Point for Multi-Axis Precision Optical Alignment

Shrewsbury, MA – Physik Instrumente (PI), a global leader in precision motion control and nanopositioning solutions, introduces the L-886 Goniometer Family, a series of high-performance motorized units designed for precise angular positioning in demanding research and industrial environments.

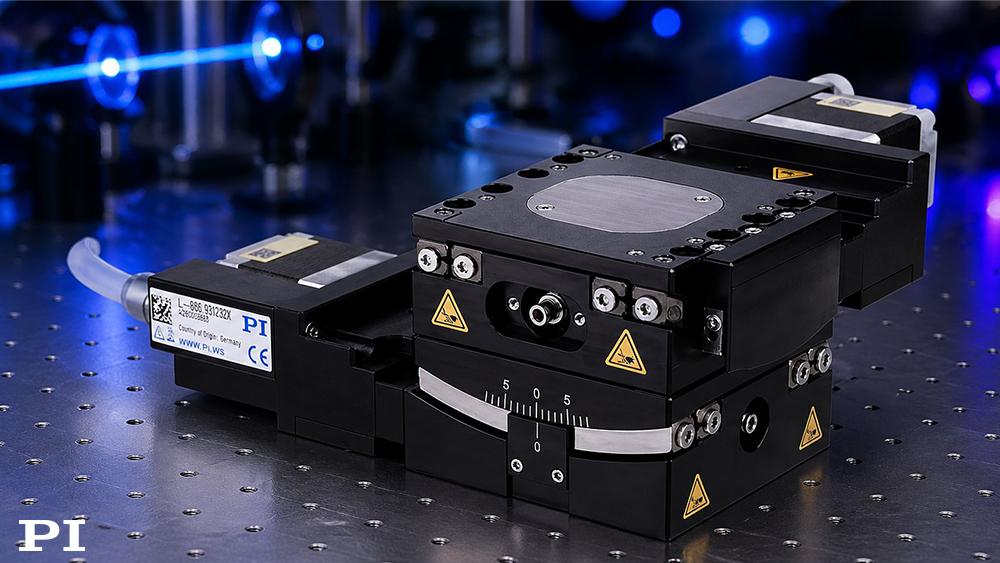

The stackable design of the L-886 goniometer series preserves a common center of rotation, a great advantage in multi-axis alignment applications.

Engineered for accuracy, flexibility, and cost efficiency, the L-886 goniometer series provides a rotation range of up to 17°, combined with a payload capacity of up to 3.5 kg. Its excellent repeatability of motion and encoder resolution of better than 1µrad ensures reliable and reproducible positioning, making it ideal for applications requiring ultra-fine angular adjustments.   See additional precision rotatation stages and goniometers.

6-Axis Alignment System with Three Goniometers
The compact design enables easy integration into multi-axis systems, including combinations with linear, vertical, and XY stages, such as the L-836 linear stage family. This flexibility makes the L-886 goniometers particularly well suited for optical inspection, fiber alignment, semiconductor testing, and metrology applications where space constraints and precision are critical. A complete 6-axis photonics alignment system integrating three L-886 goniometers is also available.

Dynamic Applications
With a maximum angular velocity of up to 10°/s, the motorized precision stages also support dynamic motion requirements, enabling efficient alignment workflows in production and laboratory environments.

The L-886 goniometer complements PI’s broad portfolio of rotary and linear precision motion and positioning systems, offering a cost-effective solution without compromising performance. Its robust mechanical design and high positioning accuracy, along with long-term stability and repeatability, are essential for high-throughput industrial test, and assembly applications.

Industries and Applications Served
Photonics & Optical Alignment, Semiconductor Manufacturing & Metrology, Microscopy & Life Sciences, Laser Processing & Advanced Manufacturing, Aerospace & Defense, Industrial Automation & Metrology Systems
