Right Angled Gear Motor Design Release

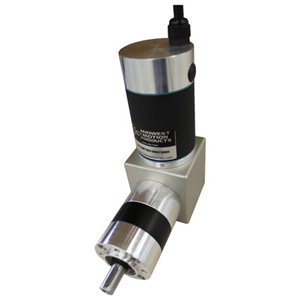

Midwest Motion Products Inc., based in Howard Lake, Minnesota, is pleased to announce the release of the new “GRA52” Right Angled Gearmotor System. This new 1:1 Right Angled Gearbox allows for significantly increased versatility, and design whose geometry allows for the unit to be mounted in tight spaces.
We employ our Standard Motor and Planetary Gearheads to complete the R/A Design. The drawing below is of a standard MMP TM57 series motor, attached to one of our Standard Planetary Gearheads via our new R/A Gearbox design.
Features/benefits
- Cost effective design – as low as $250*
- Very Versatile – Output Ratios ranging from 3.7:1 to 2076:1
- Readily available – Samples can be built from Stock Material
- High Volume capacity
*Based on a 100 unit order, for the MMP D22-301 Series Motor, paired with a single stage output gearhead
Performance Specs
- Output Speed from 1-1500 RPM
- Continuous Output Torque to 443 In-Lbs
- Current draw from > 1A to 8A Continuous
- Brushed and Brushless Motor configurations
- Input voltages from 12V to 90V DC
- Keyed, 12mm diameter output shafts
- Compact and Lightweight design (see drawing)
- CAD Files available
Company Contact
Randy Cordes
Tel: 320-490-7060 EXT. 205
